Place of Origin: | Jiangsu, China (Mainland) |
Brand Name: | Jwell |
Certification: | CE&ISO |
Minimum Order Quantity: | 1 - 1 Pieces |
---|---|
Price: | Negotiable |
Condition: | New | Application: | Sheet |
---|---|---|---|
Plastic Processed: | XPS | Screw Design: | Double-screw |
Automatic Grade: | Full Automatice | Voltage: | 380V 50HZ |
Power(W): | 350Kw | Dimension(L*W*H): | 50mx8mx3m |
Weight: | 30-45ton | After-sales Service Provided: | Field Installation, Commissioning And Training |
Warranty: | 1 Year | Capacity: | 300-600kg/h |
Color: | Customer Choice | Port: | Shanghai |
High Light: | pet sheet line,monofilament extrusion line |
Product Description
With perfect closed alveolate construction, XPS heat insulation plate is considered to be the best insulation material in the market. Granules from recycled EPS plate, as the main material, go through the die foaming extruder, calibrator, haul-off and cutting unit. With
lower density,water absorption,thermal conductivity and vapour penetrability than of other kinds of heat insolution plates, XPS heat insulation plate features with high strength, low wight, airtightness, corrosion resistance, aging resistance and low cost. Therefore
this plate can be widely used in house insulation system,in cold storage,camps,barns and civil constructions, in ground constructions of airport raceway and square, in road and railway engineering constructions,in heat insulation system of apartments,office
buildings and workshops.

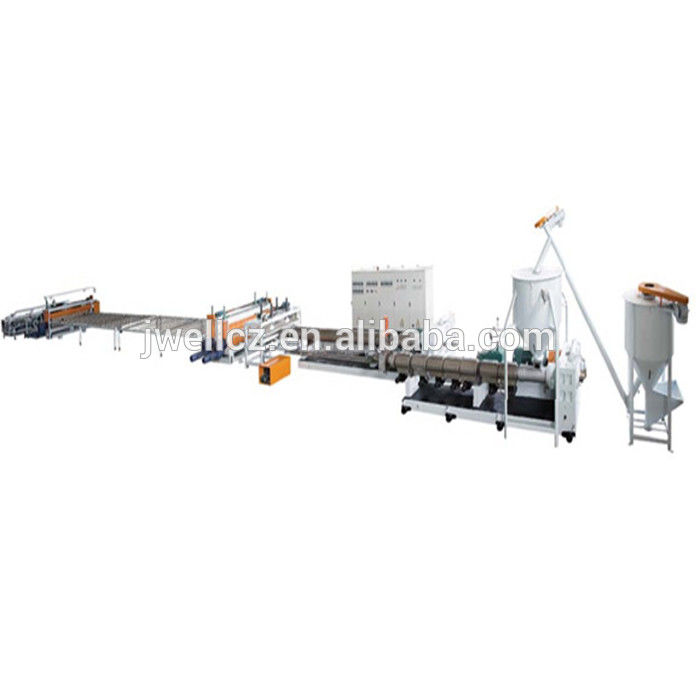

XPS heat insulation plate extrusion line has two types: single screw tandem extruders type and co-rotation parallel twin
screw extruder with single screw extruder.The models are: 135/150 single screw tandem extruder type and 75/150 co-rotation
parallel twin screw extruder with single screw extruder.Because of high mixing efficiency, co-rotation twin screw etruder
can process material of different components.
Newly forming machine designed by Jwell, adapting CO2 as forming agent, which is for taking palce of freon and
butane , features of green environment protection and low cost consumption.
Model |
XPS135/150 |
XPS75/150 |
Extruder |
135/32 150/34 |
75/40 150/34 |
Motor power(kw) |
75/90 55/75 |
90 75 |
Product width (mm) |
600-1200 |
600-1200 |
Product thickness(mm) |
20-120 |
20-120 |
Capacity(m3/d) |
200 |
300 |
