| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | JWELL |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 - 1 Sets |
|---|---|
| Price: | Negotiable |
| Condition: | New | Application: | Sheet |
|---|---|---|---|
| Plastic Processed: | PET | Screw Design: | Double-screw |
| Automatic Grade: | Fully Automatic | Voltage: | 380V 50HZ 3Phase(Customized) |
| Power(W): | 11-110KW | Dimension(L*W*H): | 20mx2.5mx2.2m |
| Weight: | 8-20T | After-sales Service Provided: | Field Installation, Commissioning And Training, Engineers Available To Service Machinery Overseas |
| Warranty: | 1 Year, 1 Year | Raw Material: | PET |
| Color: | Customised | Port: | Shanghai |
| Highlight: | pet sheet line,monofilament extrusion line |
||
Product Application

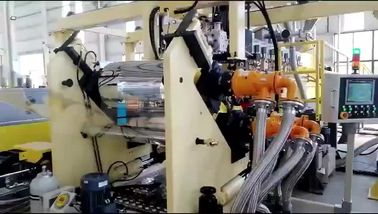

JWELL develops the parallel twin screw extrusion line for PET sheet,this line equipped with degassing system,and no need drying and crystallizing unit.The extrusion line has the properties of low energy comsuption,simple production process and easy maintenance.The segmented screw structure can reduce the viscosity loss of PET resin,the symmetrical and thin-wall calender roller highten the cooling effect and improve the capacity and sheet quality.Multi components dosing feeder can control the percentage of virgin material,recycling material and master batch precisely,the sheet is widely used for thermoforming packaging industry.
Main Features
1) PETG is called low temperature PET,it's a new environment-friendly packing material with features such as high luster,good transparency,excellent barrier proprty,self-adhesion,which is used for glue bonding and high-frequency processing.
2) CPET is a kind of modified PET.with good resistance to high temperature,it is usually used for package in microwave oven.
3) PET stereoscopic optical grating sheet,can be used as top grade package for cosmetics,medicin,tobacco&alcohol and common goods such as stationery,advertisements,posters and all kinds of cards.
4)PLA is a kind of line shape Aliphatic Polyesters.PLA can be used in rigin package of fruits,vegetables,eggs,cooked food and roast food,also can be used for packaging of sandwich,biscuit and some other package like fresh flower.
| SPECIFICATIONS FOR PET SHEET LINE | |||
| Model | Multi layer | Single layer | Highly-efficient |
| Extruder specification | JW75&36/40-1000 | JW75&40-1000 | JW95&52/44-1500 |
| Thickness of the product | 0.15-1.5mm | 0.15-1.5mm | 0.15-1.5mm |
| Main motor power | 110kw/45kw | 110kw | 250kw/55kw |
| Max extrusion capacity | 500KG/H | 450KG/H | 800-1000KG/H |
