Home ProductsPlastic Profile Extrusion Line

WPC Door Panel Production Line/Wood Plastic Composite Board Extrusion Line

WPC Door Panel Production Line/Wood Plastic Composite Board Extrusion Line

    • WPC Door Panel Production Line/Wood Plastic Composite Board Extrusion Line
    • WPC Door Panel Production Line/Wood Plastic Composite Board Extrusion Line
  • WPC Door Panel Production Line/Wood Plastic Composite Board Extrusion Line

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Jwell
    Certification: CE ISO SGS
    Model Number: SJZ65/132

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 - 4 Sets
    Price: Negotiable
    Packaging Details: Wooden package for Jwell plastic profile sheet extrusion machine for PVC
    Supply Ability: 20 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Condition: New Application: Profile
    Plastic Processed: PVC Screw Design: Double-screw
    Automatic Grade: Fully Automatic Voltage: Customized
    Power(W): 37kw Dimension(L*W*H): 4200*1500*2100
    Weight: 4000kg Name: WPC Door Production Line/Wood Plastic Composite Board Extrusion Line
    Material: 38CrMoAlA Motor: SIEMENS Brand
    Type: YF300/400 Max Output: 150-200kg/h
    Cooling Water: 8m3/h Compressor Air: 0.6m3/min
    Warranty: 12 Months Color: Customizable
    Raw Material: PVC Powder After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Port: Shanghai
    High Light:

    pvc extrusion line

    ,

    pvc profile production line

    WPC Door Panel Production Line/Wood Plastic Composite Board Extrusion Line

    Product Description

    Main Technical Parameter:

    Production Width(mm)180300/400600
    Extruder TypeSJZ51/105SJZ65/132SJZ80/156
    Motor Power(kw)223755
    TypeYF180YF300/400YF600
    Max Output(kg/h)80-100150-200350
    Cooling Water(m³/h)789
    Compressor Air(m³/min)0.60.60.6
    Note:The specifications are subject to change without prior notice.



    Product Characteristics:

    • Mainly contains conical twin-screw extruder, glue extruder, vacuum calibration, hall-off unit, cutter and stacker.
    • It adopts intelligent control system, high automatic system, with feature of stability, easy operating and high efficiency.
    • By changing different types of mold, it can produce all kinds of fast loading wallboard with different types, sizes, shapes, thickness.
    • With rich production experience, Jwell can provide on-site installation and debugging services freely.
    • Used for producing WPC decoration product, which is widely used in house and public decoration field, features non-pollution, high lifetime, heat insulation, anti-fire, easy clean and maintanace, easy change and recycleable.
    Product Pictures:

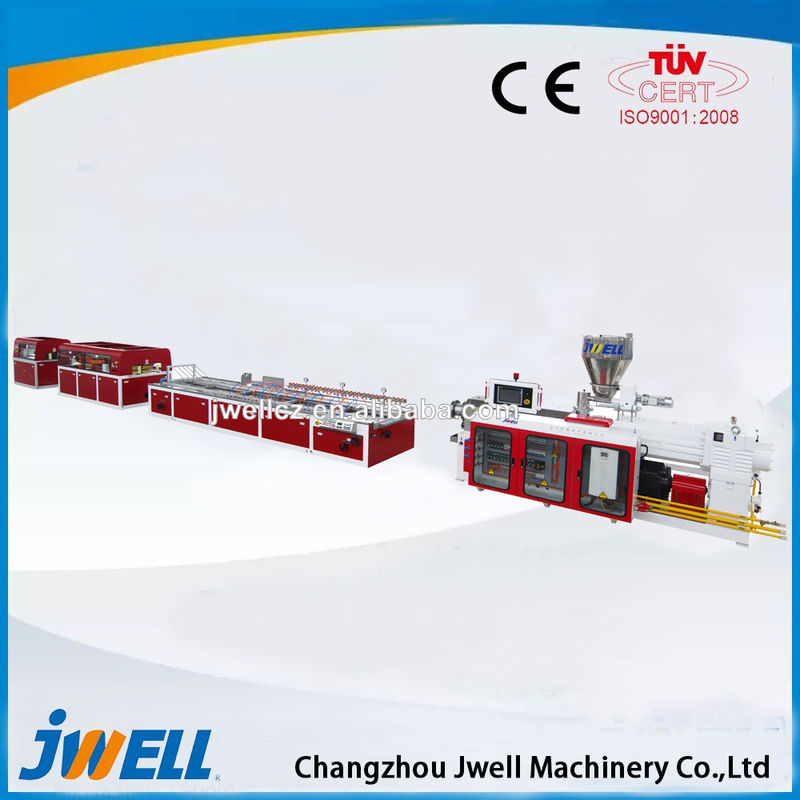

    WPC Door Panel Production Line/Wood Plastic Composite Board Extrusion Line 0

    WPC Door Panel Production Line/Wood Plastic Composite Board Extrusion Line

    WPC Door Panel Production Line/Wood Plastic Composite Board Extrusion Line 1WPC Door Panel Production Line/Wood Plastic Composite Board Extrusion Line 2



    Product Accessories:

    WPC Door Panel Production Line/Wood Plastic Composite Board Extrusion Line 3

    Extruder

    Name: YF300/400 Twin screw extruder

    Brand:Jwell

    Screw: Jin Hailuo

    Type:65/132

    Capacity:150-200kg/h

    Electrical parts

    Power: 37kw
    Motor: Siemens
    Control Panel: Simens PLC
    Electrical Spareparts: Schneider

    Frequency convertor: ABB

    WPC Door Panel Production Line/Wood Plastic Composite Board Extrusion Line 4
    WPC Door Panel Production Line/Wood Plastic Composite Board Extrusion Line 5

    800 Haul-off Unit

    Quantity of caterpillar: 2 lines.

    Haul-off motor:4KW x 2 sets
    Imported inverter
    Length of haul-off caterpillar: 2400mm;

    Effective length of Caterpillar: 2000mm

    Rubber block :400X45X35
    Effective width of caterpillar: 400mm × 2
    Haul-off speed:0.5~2.0 m/min

    YFD1000 Vacuum calibration table

    Calibration tanks and basin are made of stainless steel
    Table length: 6000mm.
    Table width: 1800mm
    Distance between aluminum track:1100mm
    Vacuum pump: 11KW x 2set, 5.5KW x 2set. (Water should be exhausted in case of frozen)
    Vacuum degree:0 -0.09 Mpa
    Water pump power and qty: 5.5kw ,1.5 kw 1 set for each

    WPC Door Panel Production Line/Wood Plastic Composite Board Extrusion Line 6



    Packaging & Shipping

    Packing & Shipping:

    • Wooden package for Jwell plastic profile sheet extrusion machine for PVC.
    • Jwell produces more than 2000 sets of extrusion machines each year, which has been sold to all over the world, including America, Brazil, Japan, Korea, India, Germany, Turnkey, Malaysia.etc.
    WPC Door Panel Production Line/Wood Plastic Composite Board Extrusion Line 7







    Company Information

    Brief Infomation of JWELL MACHINERY CO., LTD

    • Founded in Shanghai, China 1997,has developed into 5 production bases including Shanghai, Suzhou, Changzhou, Zhoushan and Guangzhou with more than 1000mu area.
    • JWELL MACHINERY (CHANGZHOU) CO., LTD. is another development strategy center of Shanghai JWELL Machinery Co.,ltd, locating at Jiangsu Zhongguan cun technology industrial park, Liyang city, Jiangsu province.
    • The largest plastic extrusion manufacturer in China with 18 professional subsidiaries, 9 big metal-working workshops and 4 big heat-treatment nitration workshops.
    • We have a high qualified R&D and experienced mechanical and electrical engineer team as well as advanced processing foundation and normative assembly shop.
    WPC Door Panel Production Line/Wood Plastic Composite Board Extrusion Line 8







    Jwell Culture:

    • Jwell Enterprise Spirit: Attentive,Edurung,Quick and Orderly;
    • Jwell Quality Orientation:Excellent performance, Perfect Products;
    • Core Idea:Be honest to people,Be faithful to Jwell.
    WPC Door Panel Production Line/Wood Plastic Composite Board Extrusion Line 9







    Our Services

    All to start and keep good & long-term cooperation with you.

    • We are the largest plastic extrusion manufacturer in China with 18 professional subsidiaries, 9 big metal-working workshops and 4 big heat-treatment nitration workshops.
    • Production capacity:20 set/sets per Month.
    • We can provide on-site installation and debugging services freely, including operation train and raw material formula , to insure the customer can operate autonomously.
    Certificates:
    WPC Door Panel Production Line/Wood Plastic Composite Board Extrusion Line 10


    Exhibition:
    WPC Door Panel Production Line/Wood Plastic Composite Board Extrusion Line 11WPC Door Panel Production Line/Wood Plastic Composite Board Extrusion Line 12







    FAQ

    Q1:--How much does it cost?

         --Please fill in your specific requirement in the bottom blank and sent to us, so that we could make a detail quotation for you.



    Q2:--I want to know more about your company and your products, how?

         --For more information, please visit our website: www.jwell.cn or www.jwellcz.cn. The best way, of course, is to go to our factory and see our products. Jwell welcomes your coming at any time!



    Q3:-- How about your after-sale service?

         --When the machines are ready and be sent to your factory, we will sent our engineers to your factory to help your worker to do the installation and train your workers. Above all, we have the maintenance engineers all over the world, who are always ready to go to our customer's factory and provide them with the best after-sale service.



    Q4:--Where is your factory located?

         --We are in No.118, Shangshang Road, Liyang, Changzhou city, Jiangsu province. welcome to visit us!!!



    Q5:..............................................................................







    For more infomation, please visit our website



    URL:http://www.jwell.cn             http:www.jwellcz.cn
