|Place of Origin:
|Jiangsu, China (Mainland)
|CE ISO SGS
|Minimum Order Quantity:
|Wooden package for Jwell PE Solid Wall PE plastic pipe.
|20 Set/Sets per Month Jwell diameters from 200-450 pe pipe single screw extruder
|Length Of Production Line:
|Jwell Diameters From 200-450 Pe Pipe Single Screw Extruder
|After-sales Service Provided:
|Engineers Available To Service Machinery Overseas
pvc pipe production line,
hdpe pipe production line
HDPE Water Supply Pipe, Gas Pipe Energy-saving and High Speed Extrusion Line
This production line adopts the most advanced technology of Europe,it is a new research achievement of energy-saving production line,which is suitable for high speed extrusion of HDPE,PP and other polyolefin pipe.compared with common production line,the energy-saving effect reach on 35%, and the product efficiency increase more than 1 times, thus it is not only saving the cost of site and manpower,but also improving efficiency.This production line has nice appearance,higher automatical degree ,production reliable and stable.

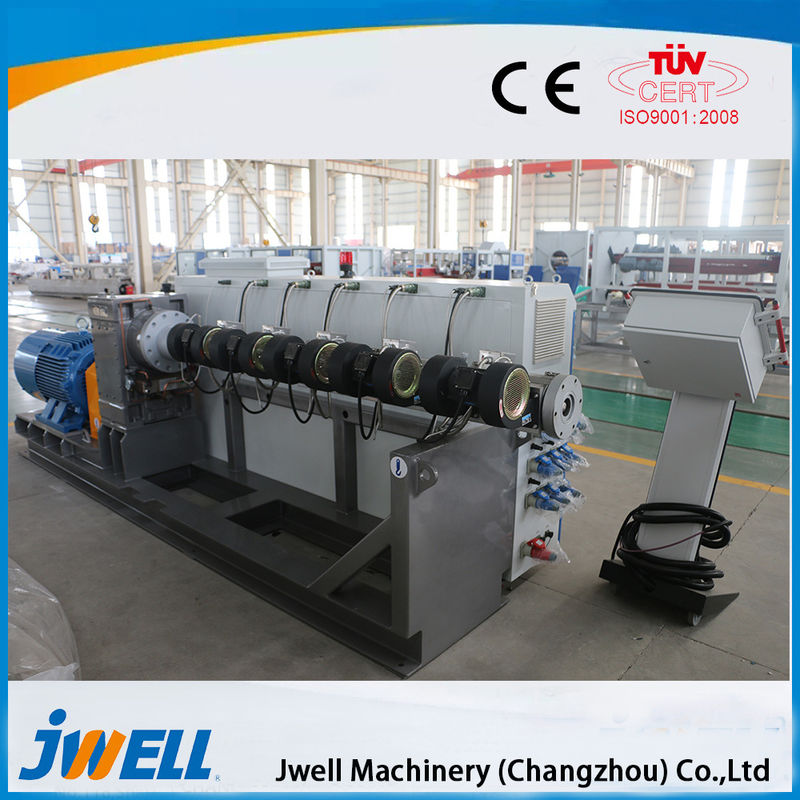

This extruder is used for PE200-450 pipe extrusion line. It consists of screw, barrel, gearbox and driving motor. The diameter of the screw is 90mm. It is made of 38CrMoAlA and adopts the treatment of Nitrided. The barrel is made of 38CrMoAlA. Like the screw, it is Nitrided treatment. The barrel has six heating control zones. The whole heating power of it is 40kw. Its cooling system is brower fan and the cooling power is 2.75kw. The matrial of the house is QT200. The type of the gear is Helical gears and the material is 20CrMnTi. It uses the Quenching of the gear surface. Bearings are Chinese famous bearings. Its lubricating system is press system. At the same time, its cooling system is separate. The method of the feeding block is water cycle. The material is Q235. Then it is an DC motor. The power of it is 160kw.
The 25/25 single screw extruder is for color strip. The diameter of its screw is 25mm. It is Nitrided treatment. The material of the barrel is 38CrMoAlA. It has two heating control zones. Each heating power is 1.8kw. The parts of this kind of gearbox is as the same as the gearbox in the extruder. But Lubricating system is Splashing system. Also its feeding block is like the feeding block in extruder. It has an AC motor with the power of 1.5KW.
The mould is spiral type. Its mouth die and core die are changeable. It possess twenty heating control zones. The heating power will up to max 102kw. The calibration unit is high-quality with resistance copper. The vacuum pump is 5.5kw and the water pump is 5.5kw. It is 5.8 meters long. And the stoke is 500mm.
The cooling tank is stainless steel. The method of the cooling tank is spraying. And each set water pump is 5.5kw. The length of it is also 5.8m.
This haul-off unit with pneumatic pressing is used for PE200-450 pipe extrusion line. The method of this haul-off unit having six caterpillars is rubber block caterpillar. The length of the caterpillar is 1100mm. It uses AC motors with 7.5kw of each.
This cutter is used for PE 200-450 pipe extrusion line. It is no dust cutting with pneumatic pressing. The moving method of the platform is also a pneumatic way. This cutter is suitable for the pipes with diameter ranged from 200-450. The motor of this cutter is 3kw.
Packaging & Shipping:
Brief Infomation of JWELL MACHINERY CO., LTD
Changzhou Jwell Machinery Co.,Ltd is another development strategy center of Shanghai Jwell Machinery Co.,ltd,located at Jiangsu zhongguancun Technology Industrial Park, Liyang city, Jiangsu province, a high-tech manufacturer specializing in R&D of plastic extrusion equipment. The factory area is about 400 acres; we have a high qualified R&D and experienced mechanical and electrical engineer team as well as advanced processing foundation and normative assembly workshop. Our enterprise spirit is :Attentive, Enduring, Quick and Orderly. Welcome both new and old customer to visit us for investigation, guidance and cooperation. Welcome to Changzhou, welcome to Jwell!
All to start and keep good & long-term cooperation with you.
Q1--How much does it cost?
--Please fill in your specific requirement in the bottom blank and sent to us, so that we could make a detail quotation for you.
Q2:--I want to know more about your company and your products, how?
--For more information, please visit our website: www.jwell.cn or www.jwellcz.cn. The best way, of course, is to go to our factory and see our products. Jwell welcomes your coming at any time!
Q3:-- How about your after-sale service?
--When the machines are ready and be sent to your factory, we will sent our engineers to your factory to help your worker to do the installation and train your workers. Above all, we have the maintenance engineers all over the world, who are always ready to go to our customer's factory and provide them with the best after-sale service
Q4:--Where is your factory located?
--We are in No.118, Shangshang Road, Liyang, Changzhou city, Jiangsu province. welcome to visit us!!!
Contact Person: Zhou
