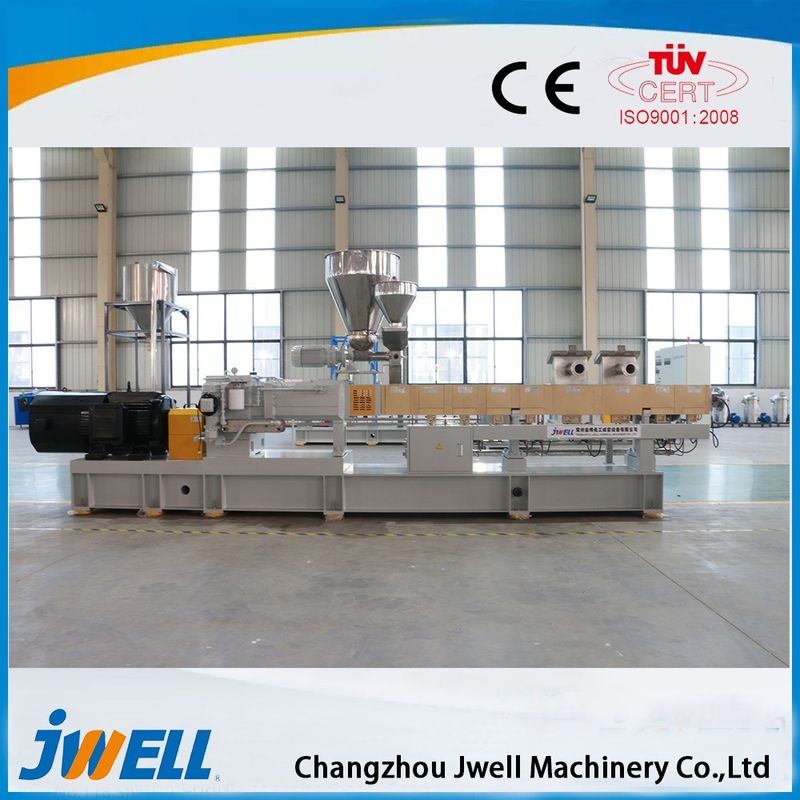

PVC Ribbed Plastic Pipe Extrusion Line , PVC Pipe Production Line Jwell Brand

PVC Ribbed Plastic Pipe Extrusion Line , PVC Pipe Production Line Jwell Brand

    • PVC Ribbed Plastic Pipe Extrusion Line , PVC Pipe Production Line Jwell Brand
    • PVC Ribbed Plastic Pipe Extrusion Line , PVC Pipe Production Line Jwell Brand
  • PVC Ribbed Plastic Pipe Extrusion Line , PVC Pipe Production Line Jwell Brand

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Jwell
    Certification: CE ISO SGS
    Model Number: SJZ-63 Jwell PVC Ribbed Pipe Plastic Pipe Extrusion Process

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 - 4 Sets
    Price: Negotiable
    Packaging Details: Wooden package forJwell PVC Ribbed Pipe Plastic Pipe Extrusion Process.
    Supply Ability: 20 Set/Sets per Month Jwell PVC Ribbed Pipe Plastic Pipe Extrusion Process
    Contact Now
    Detailed Product Description
    Condition: New Application: Pipe
    Plastic Processed: PE Screw Design: Single-screw
    Automatic Grade: Fully Automatic Voltage: Customized
    Power(W): 55kw Dimension(L*W*H): 4200*1500*2100
    Weight: 4000kg Type: PE63
    Extruder: 65/33 Capacity: 120-150kg/h
    Length Of Production Line: 30m Speed: 1.2-12m
    Power: 104kw Motor Power: 45kw
    Mould Power: 11kw Pressure Degree: SDR11/SDR17
    Name: Jwell PVC Ribbed Pipe Plastic Pipe Extrusion Process After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Port: Shanghai
    High Light:

    plastic pipe production line


    hdpe pipe production line

    Jwell PVC Ribbed Pipe Plastic Pipe Extrusion Process


    Product Description

    Features & Advantages: The Large Diameter HDPE/MDPE Pipe Extrusion Line research & developed by Jwell Machinery Co., features of unique structure, easily control, highly automation and stable performance. Pipes produced by this machine has the moderate rigidity, strength, as well as good flexibility, anti-rot, anti-stress split, and favorable hot melting, make this large diameter pipe considered as the prefer product for water and gas transportation system in cities.



    Main Technical Parameter:


    Diameter Extruder Capacity Power
    450-800 120/33 or 150/33 1000-1300 600
    630-1000 150/33 1000-1300 630
    800-1200 90/33;120/33 or 150/33 1000-1500 900
    1000-1600 120/33 or 150/33 1000-1700 1300
    1400-2300 120/33;120/33 or 150/33 1500-2000 1400
    2000-3000 120/33;120/33 or 150/33 2000-2500 1550





    Note:The specifications are subject to change without prior notice.


    The modern developed 2-layer or 3-layer spiral mould is specially for double-anti pipe extrusion. This pipe owns even and equal co-extrusion wall thickness, the inner and outer wall made of double-anti material (Anti-flammable, anti static electricity), the core layer of HDPE wall, reasonably reduce the costs of double-anti material, accordingly reduced the costs of the whole product.



    HDPE Water Supply Pipe, Gas Pipe Energy-saving and High Speed Extrusion Line

    This production line adopts the most advanced technology of Europe,it is a new research achievement of energy-saving production line,which is suitable for high speed extrusion of HDPE,PP and other polyolefin pipe.compared with common production line,the energy-saving effect reach on 35%, and the product efficiency increase more than 1 times, thus it is not only saving the cost of site and manpower,but also improving efficiency.This production line has nice appearance,higher automatical degree ,production reliable and stable.


    Main Technical Parameter:


    Diameter Extruder Capacity Power
    20-75 50/38 320kg/h 150kw
    50-250 75/38 550kg/h 230kw
    160-450 90/38 850kg/h 450kw
    315-630 120/38 1200kg/h 630kw
    450-800 120/38 1200kg/h 680kw
    800-1000 150/38 1400kg/h 815kw
    710-1200 150/38 1400kg/h 930kw
    900-1600 150/38;75/38 1900kg/h 1200kw
    1200-2000 150/38;90/38 2200kg/h 1400kw
    1600-2500 150/38;120/38 2500kg/h 1580kw
    2000-3000 150/38;120/38 2500kg/h 1580kw




    Common Diameter HDPE Pipe , PP Chemical Usage Pipe and MPP Electrical Wire Protection Pipe Extrusion Line

    Advantage:Our company using the development HDPE,PP pipes extrusion technology develops this kind of extrusion line. This line features compact structure, highly automation and stable performance. This line is widely used in producing HDPE water, gas supply pipe, double-anti pipe for mine industries.



    Main technical parameters:

    Type Diameter Extruder Output capacity(kg/h) Power(kw)
    JWPEG63 20-63MM 25/25;65/33  120-150  110
    JWPEG160 63-160MM 25/25;65/33  120-300  160
    JWPEG250 75-250MM 25/25;75/33  280-400  210
    JWPEG450 160-450MM 25/25;90/33  500-700  385
    JWPEG630 315-630MM 25/25;120/33  700-900  535


    Product Accessories:
    Packaging & Shipping

     Packaging & Shipping:

    • Wooden package for Jwell plastic profile sheet extrusion machine for PVC.
    • Jwell produces more than 2000 sets of extrusion machines each year, which has been sold to all over the world, including America, Brazil, Japan, Korea, India, Germany, Turnkey, Malaysia.etc.



    Company Information

    Brief Infomation of JWELL MACHINERY CO., LTD

    • The largest plastic extrusion manufacturer in China with 18 professional subsidiaries, 9 big metal-working workshops and 4 big heat-treatment nitration workshops.
    • Founded in Shanghai, China 1997,has developed into 5 production bases including Shanghai, Suzhou, Changzhou, Zhoushan and Guangzhou with more than 1000mu area.
    • JWELL MACHINERY (CHANGZHOU) CO., LTD. is another development strategy center of Shanghai JWELL Machinery Co.,ltd, locating at Jiangsu Zhongguan cun technology industrial park, Liyang city, Jiangsu province.
    • We have a high qualified R&D and experienced mechanical and electrical engineer team as well as advanced processing foundation and normative assembly shop.
    Jwell Culture:
    • Jwell Enterprise Spirit: Attentive,Edurung,Quick and Orderly;
    • Jwell Quality Orientation:Excellent performance, Perfect Products;
    • Core Idea:Be honest to people,Be faithful to Jwell.
