| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | CE ISO SGS |
| Model Number: | SJZ 65/132 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 3,7000 |
| Packaging Details: | Wooden package |
| Delivery Time: | 60 days |
| Supply Ability: | 20 Sets |
| Condition: | New | Application: | Profile |
|---|---|---|---|
| Plastic Processed: | PVC | Screw Design: | Double-screw |
| Automatic Grade: | Fully Automatic | Voltage: | Customized |
| Power(W): | 37kw | Dimension(L*W*H): | 4200*1500*2100 |
| Weight: | 4000kg | Material: | 38CrMoAlA |
| Motor: | Siemens Beide Or WEG | Type: | YF180; YF300; YF400 |
| Max Output: | 150kg/h | Cooling Water: | 5m3/h |
| Compressor Air: | 0.6m3/min | Warranty: | 1 Year |
| Name: | Jwell Pvc Fast Loading Wallboard Extrusion Line | Color: | Customizable |
| Raw Material: | PVC Powder | After-sales Service Provided: | Yes |
| Port: | Shanghai | ||
| High Light: | pvc wall panel making machine,pvc panel making machine |
||
Plastic Recycling Jwell Extrusion Machinery Pvc Fast Loading Wallboard Waterproof
Jwell High efficiency quick assemble board extrusion line

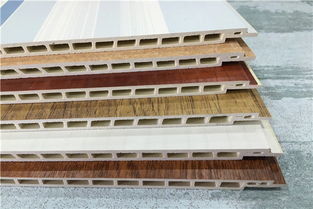

Fast loading wallboard is also called bamboo fiber integrated metope which uses bamboo fiber and PVC as base material, and different printing film as the surface treatment. Its material is a kind of decoration material widely used in family, project and so on which can replace paint and wallpaper decoration material. Its color is comparable to traditional wallpapers.
Main Technical Parameter:
| Production Width(mm) | 180 | 300/400 | 600 |
| Extruder Type | SJZ51/105 | SJZ65/132 | SJZ80/156 |
| Motor Power(kw) | 22 | 37 | 55 |
| Type | YF180 | YF300/400 | YF600 |
| Max Output(kg/h) | 80-100 | 150-200 | 350 |
| Cooling Water(m³/h) | 7 | 8 | 9 |
| Compressor Air(m³/min) | 0.6 | 0.6 | 0.6 |
Note:The specifications are subject to change without prior notice.
Product Characteristics:
As a new type of wall decoration material, it has advantages of environment friendly, heat insulation, dampproof, heat preservation, fireproof, sound insulation, fashion, portable,easy to assemble. So it can solve the problem of the metope easy to mildew and metope dirty wash easily, meanwhile it also reach requirement of engineering buildings fire protection.
Brief Infomation of JWELL MACHINERY CO., LTD
All to start and keep good & long-term cooperation with you.
Certificates:
FAQ
1. How much does the machine cost?
Please write down your requirements of the machine, like the dimension of your final product so that we can make specification for you.
2. How long is your delivery time?
It usually takes 2 months after we conclude the contact with each other.
3. Will you train our workers how to operate the machine?
We will send our engineers to your factory to install and test the machine for you.
