Place of Origin: | Jiangsu, China (Mainland) |
Brand Name: | Jwell |
Certification: | CE ISO SGS |
Minimum Order Quantity: | 1 - 4 Sets |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden package for Jwell plastic profile sheet extrusion machine for PVC |
Supply Ability: | 20 Set/Sets per Month |
Condition: | New | Application: | Profile |
---|---|---|---|
Plastic Processed: | PVC | Screw Design: | Double-screw |
Automatic Grade: | Fully Automatic | Voltage: | Customized |
Power(W): | 37 KW | Dimension(L*W*H): | 4,75 X 1,55 X 2,46 M |
Weight: | 5000 Kg | Name: | Foam Board Extruding Machine/plastic Foam Extruder |
Material: | 38CrMoAlA | Motor: | SIEMENS Brand |
Main Motor Power: | 75 KW | Production Width: | 1,220 - 1,600 M |
Product Thickness: | 3-25mm | Max Capacity: | 450kg/h~550kg/h |
Warranty: | 12 Months | Color: | Customizable |
Raw Material: | PVC Powder | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Port: | Shanghai, China | ||
High Light: | wpc board production line,wpc pvc foam board machine |

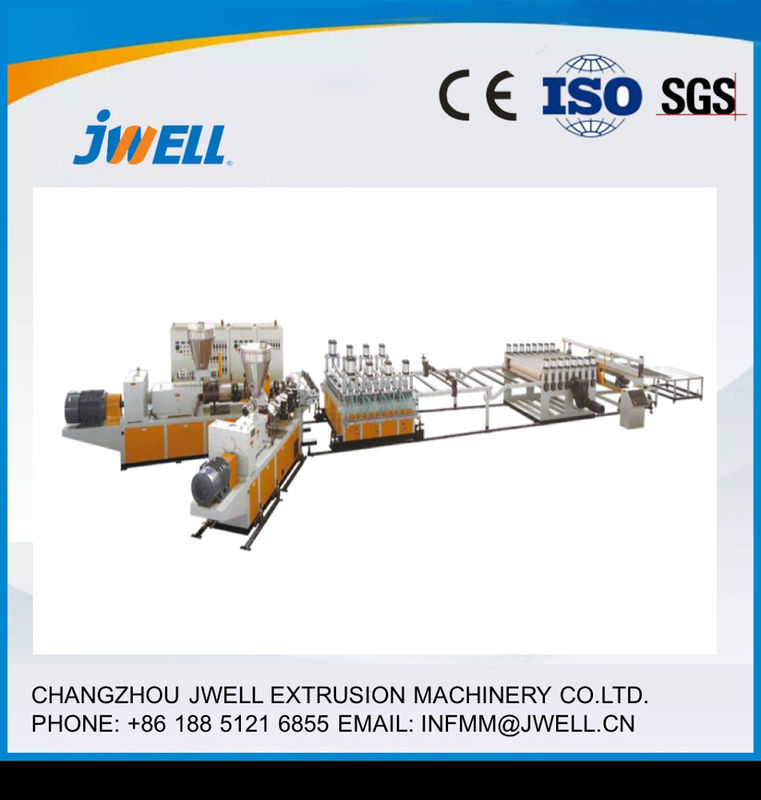

CE certification foam board extruding machine/plastic foam extruder/plastic foam extrusion machine
Main Technical Parameter:
Model | Skinning Foaming Board Extrusion Line | Co-Extrusion Foamed Board Extrusion Line |
Products Width (mm) | 1220-1600 | 1220-1600 |
Products Thickness(mm) | 3~25 | 3-20 |
Extruder Specification | SJZ80/173 | SJZ65/132,SJZ80/156 |
Max. Capacity(kg/h) | 450~550 | 450 |
Main Motor Power(kw) | 75 | 37/75 |
Note:The specifications are subject to change without prior notice. |
Product Characteristics:
Product Accessories:
Packing & Shipping:
Brief Infomation of JWELL MACHINERY CO., LTD
Jwell Culture:
All to start and keep good & long-term cooperation with you.
Contact Person: Zhou
Tel: +008613661796078
