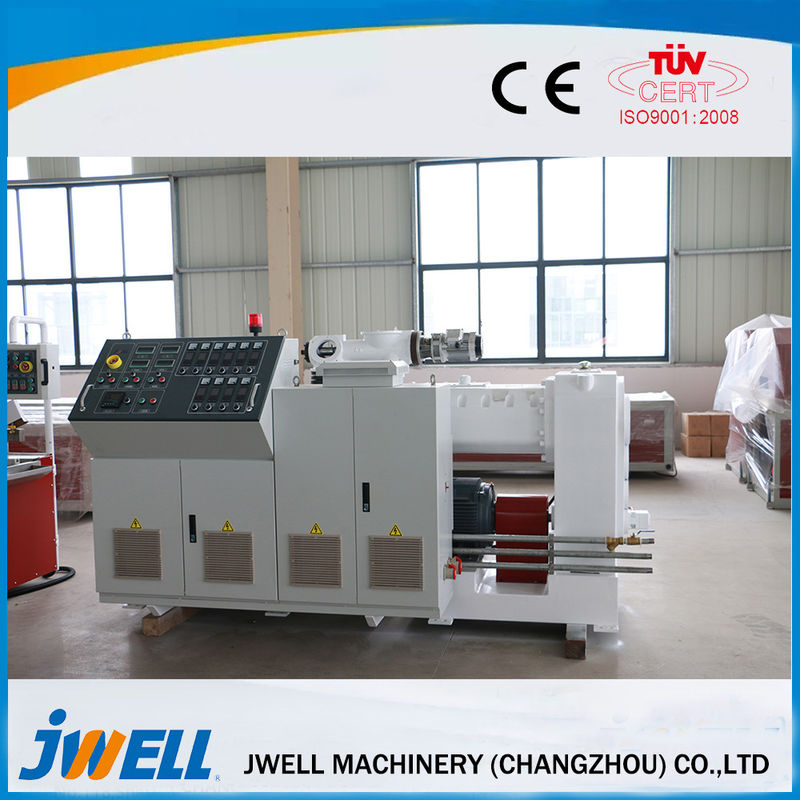

Low Density Wall Board Single Screw Extruder With Film Coating Equipment

Low Density Wall Board Single Screw Extruder With Film Coating Equipment

    • Low Density Wall Board Single Screw Extruder With Film Coating Equipment
    • Low Density Wall Board Single Screw Extruder With Film Coating Equipment
    • Low Density Wall Board Single Screw Extruder With Film Coating Equipment
    • Low Density Wall Board Single Screw Extruder With Film Coating Equipment
    • Low Density Wall Board Single Screw Extruder With Film Coating Equipment
    • Low Density Wall Board Single Screw Extruder With Film Coating Equipment
  • Low Density Wall Board Single Screw Extruder With Film Coating Equipment

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Jwell
    Certification: CE ISO9001

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set/Sets
    Price: Negotiable
    Packaging Details: Wooden package forJwell hot sale PVC WPC foaming co-extrusion semi- skining extrusion line
    Supply Ability: 25 Set/Sets per Month Jwell lower cost pvc semi-skinning foam board extrusion line
    Contact Now
    Detailed Product Description
    Condition: New Application: Profile
    Plastic Processed: PVC Screw Design: Double-screw
    Automatic Grade: Fully Automatic Voltage: Customized
    Power(W): 132kw Dimension(L*W*H): 4.2m*1.5m*2.4m
    Weight: 4000kg Name: Jwell Lower Cost Pvc Semi-skinning Foam Board Extrusion Line
    Production Width: 1560mm Extruder Type: SJZ92/188
    Motor Power: 132kw Type: YF1560
    Output(kg/h): 550kg/h Cooling Water: 9
    Compressor Air: 0.8 Raw Material: PVC
    Motor: SIEMENS Brand After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Port: Shanghai
    High Light:

    wpc board production line

    ,

    wpc pvc foam board machine

    Jwell hot sale PVC WPC foaming co-extrusion semi- skinning extrusion line


    PVC foaming board and WPC foaming board application:
    Transportation industrial: Ship, plane, bus, chamber of train, roofing, core layer, inner decoration board. Construction and decoration industrial: outer wall board, inner decoration board, housing, office, public construction board, furniture. Cupboard, roofing. Adopting printing, film coating and thermo-embossing equipment, will get all kinds of emulation wooden product.This extrusion line is made according to the features of free foamed board and skinning foamed board by using the extrusion system for free foamed board machine and the downstream equipment for skinning foamed board. The product produced by this machine has the features of smooth surface, low density, and the surface hardness of the product is between the skinning foamed board and free foamed board. The investment of this machine is close to the investment of free foamed board extrusion line, which makes it easy for market promotion.



    Mode
    Skinning foaming board extrusion line
    Co-extrusion foamed board extrusion line
    Products Width
    1220-1600mm
    1220-1600mm
    Products Thickness
    5-20mm
    3-20mm
    Extruder Specification
    SJZ80/156
    SJZ65/132,SJZ80/156
    Capacity
    400Kg/h
    450kg/h
    Main Motor Power
    75Kw
    37KW/75KW


    Excellent character for WPC material

    1. Excellent water resistance, the bending strength and stiffness will not change after immersing in water for 30days.
    2. Excellent antisepsis; as non-absorbent, it will not rot and has a very good quality of corrosion resistance, neither does it has termites harmless.
    3. Truly green & environment-friendly, no release of formaldehyde and can be recycled. It can save the nature wood resources which was also called revolutionary green environmental newly material.
    4. Anti-crash. The fixing ability of wood screw is very strong, which is 4 times than wood-dust board, and 5 times than MDF(medium density fiberboard).
    5. It can be used as an outdoor sheet for long time because of its well anti-ultraviolet function and good capability even in the temperature of minus 30 degree.




    Low Density Wall Board Single Screw Extruder With Film Coating Equipment 0
    Item
    Wood material
    Plastic material
    Wood-plastic material
    g/cm3
    0.8-1.1
    0.9-1.1
    0.7-1.2
    Rigid and carrying capacity
    High
    Low
    High
    Processing capacity
    Easy
    Not easy
    Easy
    Durable
    Limited
    High
    High
    Bibulous capability
    High
    No sobbing
    No sobbing
    Sunlight endurance
    Good
    Not good
    Good
    Acid and alkali wearable
    Bad
    Good
    Good
    Environmental wearable
    Not good
    Good
    Good
    Maintenance
    Convenience
    Not good
    Convenience
    Recycling
    Bad
    Partly Can be recycled
    100% can be recycled
    Security
    Bad
    Good
    Good
    Structure flexible
    High
    Low
    Highest

    For many natural plant fibers such as wood, bamboo, crop stalks, etc, which can be used to squeeze the raw materials quality, must be a process crushing, milling, screening, drying, with mixed, and other pretreatment process to improve the defects and deficiencies of single material in the course of the extrusion. The fiber should be of appropriate particle size in the process, and then join them with coloring agent, lubricants, coupling agent or foam, and other additives of appropriate amount, put them in a high-speed mixed units that they can be fully mixed and then do further precipitation, to meet the requirements suitable for extrusion.

    WPC products:

    Pelletizing Equipment

    SJZ Series Counter Rotation Conical Twin-screw Pelletizing Extruder
    This pelletizing machine is composed by a conical twin-screw extruder and the correspondingly pelletizing downstream equipment, it is suitable for the pelletizing of PVC, PE raw material with wood powder or other additives. The pellets produced by this machine is evenly, solid, elegance. The palletizing downstream equipment is the die face cutter, air transferring unit, vibration separating and cooling unit. This palletizing downstream equipment has the features of high automation.


    Model
    mm
    Power of main motor(KW)



    Capacity
    SJZ80
    80/156
    55
    280-300
    SJZ92
    92/188
    110
    380-500


    JWE Series Co-rotation Parallel Twin-screw Pelletizing Extruder
    1. Building block type screw and barrel of the extruder, according to the L/D by yourself. It's fit for all kinds of the material machining for the surface wearable. The temperature of barrel can enactment by oneself each zone.
    2. The method of the head cutting is heating cut commonly
    3. The method of cooling remove the material is two class or three class fan remove commonly


    Model
    mm
    Power of main motor(KW)
    Capacity
    JWE75
    72
    110
    350-450
    JWE92
    92
    200
    500-800


    PVC Fast Loading Wallboard/Soft Crystal Wallboard/ Bamboo Fiber Integrated Metope Extrusion Line

    This extrusion line mainly contains conical twin screw extruder ,glue extruder ,vacuum calibration unit ,haul-off unit ,cutter and stacker. It adopts intelligent control system, high automatic system, with feature of stability, easy operating and high efficiency. By changing different types of mold, it can produce all kinds of fast loading wallboard with different types, sizes, shapes, thickness. With rich production experience, JWELL can provide on-site installation and debugging services freely, including operation train and raw material formula, to insure the customer can operate autonomously.


    The feature : Fast loading wallboard is also called bamboo fiber integrated metope which use bamboo fiber as base material, resin material use as the surface craft material is widely used in metope adornment material of family life ,project and so on , its surface color effect can reach traditional wallpaper, besides it protects the wall . Regards as a new product is gradually replacing wall paint ,wallpaper metope adornment material .Fast loading wallboard is a new type decoration material with advantage like environment friendly ,heat insulation,damp-proof,heat preservation,fireproof,sound insulation,fashion ,element , portable, easy to assemble. So it can solve the problem of the metope easy to mildew and metope dirty wash easily, meanwhile it also reach requirement of engineering buildings fire protection .


    Production width(mm)
    180
    300/400
    600
    800
    Extruder type
    51/105
    65/132
    80/156
    80/156
    Motor power
    22kw
    37kw
    55kw
    55kw
    Auxiliary Type
    180
    300/400
    600
    800
    Capacity
    80-100kg
    150-200kg
    150kg
    200kg
    Cooling water
    7m3/h
    8m3/h
    9m3/h
    10m3/h
    Compressor air
    0.6
    0.6
    0.6
    0.6


    PVC Single-screw WPC (foaming) Extrusion Line

    The production line is mainly used for the production of the Great Wall panels, wall panels, partition walls, pinch plate, acoustic panels, stair railing, shutters, decorative, foot line and any other eco- wood plastic productions. The extruder with the unique screw design prevents raw material from high shear or over plasticizing, As a result, products gain significant texture of wood surface, and product with characteristics: no deformation, non-fading, fire prevention, anti-corrosion, anti-moth, anti-aging and anti-UV.


    Production width
    108
    180
    240
    300
    Extruder type
    45/25
    65/25;75/25
    90/25
    120/25
    Motor power
    11kw
    22/30kw
    55kw
    55kw
    Type
    YF108
    YF180
    YF240
    YF300
    Capacity(kg/h)
    20
    50/70
    90
    150
    Cooling water(m3/h)
    7
    7
    8
    9
    Compressor air(m3/h)
    0.5
    0.6
    0.8
    0.8


    Cross Door Plate Extrusion Line



    Model
    YF800
    YF1000
    YF1250
    Max Width of product (mm)
    800
    1000
    1250
    Extruder model
    SJZ80/156
    SJZ92/188
    SJZ92/188
    Extruder power (KW)
    55
    132
    132
    Max of extrusion capacity (Kg/h)
    280
    600
    600
    Cooling water (m3 /h)
    12
    15
    18
    Compressed air (m3 /min)
    0.8
    1
    1.2

    Certifications
