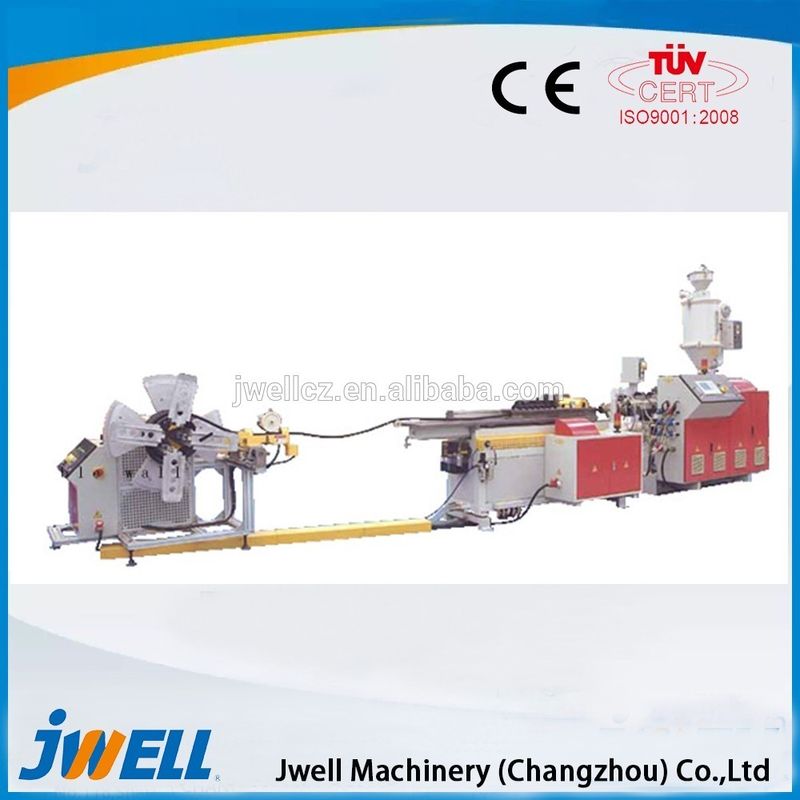

Jwell Steel reinforced spiral pipe extrusion line

Jwell Steel reinforced spiral pipe extrusion line

    • Jwell Steel reinforced spiral pipe extrusion line
    • Jwell Steel reinforced spiral pipe extrusion line
    • Jwell Steel reinforced spiral pipe extrusion line
    • Jwell Steel reinforced spiral pipe extrusion line
    • Jwell Steel reinforced spiral pipe extrusion line
    • Jwell Steel reinforced spiral pipe extrusion line
  • Jwell Steel reinforced spiral pipe extrusion line

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Jwell
    Certification: CE ISO SGS
    Model Number: SJZ-63 Jwell Steel reinforced spiral pipe extrusion line

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 - 4 Sets
    Price: Negotiable
    Packaging Details: Wooden package forJwell Steel reinforced spiral pipe extrusion line
    Supply Ability: 20 Set/Sets per Month Jwell Steel reinforced spiral pipe extrusion line
    Contact Now
    Detailed Product Description
    Condition: New Application: Pipe
    Plastic Processed: PE Screw Design: Single-screw
    Automatic Grade: Fully Automatic Voltage: Customized
    Power(W): 55kw Dimension(L*W*H): 4200*1500*2100
    Weight: 4000kg Type: PE63
    Extruder: 65/33 Capacity: 120-150kg/h
    Length Of Production Line: 30m Speed: 1.2-12m
    Power: 104kw Motor Power: 45kw
    Mould Power: 11kw Pressure Degree: SDR11/SDR17
    Name: Jwell Steel Reinforced Spiral Pipe Extrusion Line After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Port: Shanghai
    High Light:

    plastic pipe production line

    ,

    hdpe pipe production line

    Jwell Steel reinforced spiral pipe extrusion line

    Product Description

    Features & Advantages:

    Steed reinforced pipe has the features of not easy in corrosion of the steel band, the top of the steel band has the thicker protection layer, reinforced rib is not easy in collapse, the seam is connected strongly, the tensile strength of the pipe in axial direction is high so that during the use the pipe is not easy in leakage. We have applied the patent for this machine and the patent numbers are ZL200920073200.4 and 200910054675.3

    Jwell Steel reinforced spiral pipe extrusion line 0



    Applications:

    The steel reinforced spiral pipe has a high ring stiffness and good flexibility in axial direction, so that the pipe system has the features of stiffness and flexibility. When happening the unfavorable situations such as the soil subside unevenly, rise of underground water, the load of the partial ground is too big, earthquake or other disasters, the pipe can adapt the situations by flexible deformation, so that the connection point will not leak or broken due to the big stress and deformation. This pipe has combined all the advantages of the normal no pressure plastic pipes and the strength of the steel rib, so this pipe can meet different engineering requirements, this pipe can be used widely for delivery of corrosion or non corrosion no pressure liquids.

    Main Technical Parameter:



    TypeInner Diameter Range Total Power
    1200200-1200 200
    2000200-2000 245
    26001200-2600 280
    30001400-3000 300


    Note:The specifications are subject to change without prior notice.

    HDPE/PP/PVC Vertical Type Double Wall Corrugated Pipe and PVC Ribbed Pipe Extrusion Line



    Properties: DWC pipe is mainly used for water drainage system. It is a fully computer controlled line. It features high and stable output capacity, and highly automatic operation. For HDPE, you can choose high efficient single screw extruder. For PVC, you can choose conical twin-screw extruder or parallel twin- screw extruder. Forming system consists mould and corrugator. Mould blocks can be easily changed and they have air or water cooling system. The belling process is on line. High precision cutting can be guaranteed by cutting machine. The production line can also be equipped with SIEMENS PLC system.

    Jwell Steel reinforced spiral pipe extrusion line 1

    Main Technical Parameter:

    TypePipe DiameterPVC OutputHDPE OutputMax Speed m/minTotal Power
    300100-30060060010400
    600200-6008008005500
    800200-800120010003680
    1000200-1000130012002.5710
    1200800-1200140014001.5800



    HDPE/PP/PVC Horizontal Type Double Wall Corrugated Pipe Extrusion Line



    Properties: HDPE/PP/PVC horizontal type DWC pipe extrusion line produced by Jwell has many patents. Full automatic control, running stable, high capacity. HDPE/PP material use high efficient single screw extruder, and PVC material use conical twin screw extruder or parrallel twin screw extruder. Horizontal type corrugator adopt advanced shuttle-type structure, closed water cooling system, on-line belling. Whole line is controlled by PLC computer.

    Jwell Steel reinforced spiral pipe extrusion line 2



    Main technical parameters:

    TypePipe DiameterPVC outputHDPE outputMax SpeedTotal power
    16090-160130-250200-3006.09.7
    230110-250230-350230-3505.08.6
    500200-400630-750250-5003.016.9
    800500-800 1000-11003.016.9
    1200800-1200 1000-12001.030.0





    Special Use Single Wall and Double-wall Corrugated Pipe Extrusion Line

    Mini single wall high speed corrugated pipe forming machine: Can produce two diameters or three diameters. single wall corrugated pipe in the same mould blocks, which reduce the cost of the mould blocks and reduce the time for changing the mould blocks, increase the efficiency.

    Jwell Steel reinforced spiral pipe extrusion line 3

    Advantage: The pipe from this machine is anti-high temperature, anti-wear, and high strength, and it is widely used in electrical conduct, car conduct pipe, protective pipe, machine area and automatic meter area. With Jwell special design screw and advanced mould, the line is high speed, run stable and easy-control.

    Main Technical Parameter:

    Type255063150
    Diameter of screw45656575
    L/D30:133:133:133:1
    Total Power507070100
    Diameter of the pipes8-2012-5012-6390-150
    Speed of Haul-off unit1515105



    Product Accessories:
    Jwell Steel reinforced spiral pipe extrusion line 4

    Extruder

    Name: 63 single screw extruder

    Brand:Jwell

    Screw: Jin Hailuo

    Type:65/33

    Capacity:120-150kg/h



    Electrical parts

    Power: 45kw
    Motor: Siemens
    Control Panel: Simens PLC
    Electrical Spareparts: Schneider

    Frequency convertor: ABB

    Jwell Steel reinforced spiral pipe extrusion line 5
    Jwell Steel reinforced spiral pipe extrusion line 6

    Haul-off Unit

    Haul-off method: rubber block caterpillar.

    Haul-off motor:4KW x 2 sets

    Press method:pneumatic pressing
    Number of caterpillars: 2sets;

    Driving Motor: 1.5kw*2

    Length of caterpillar:1400mm


    YFD1000 Vacuum calibration table

    Calibration tanks and basin are made of stainless steel
    Table length: 5800mm.
    Stroke: 500mm
    Vacuum pump: 3KW x 2set
    Vacuum degree:0 -0.09 Mpa
    Water pump: 3kwx2

    Cooling method: Spraying

     Jwell Steel reinforced spiral pipe extrusion line 7




    Packaging & Shipping

     Packaging & Shipping:

    • Wooden package for Jwell plastic profile sheet extrusion machine for PVC.
    • Jwell produces more than 2000 sets of extrusion machines each year, which has been sold to all over the world, including America, Brazil, Japan, Korea, India, Germany, Turnkey, Malaysia.etc.

    Jwell Steel reinforced spiral pipe extrusion line 8



    Company Information

    Brief Infomation of JWELL MACHINERY CO., LTD

    • The largest plastic extrusion manufacturer in China with 18 professional subsidiaries, 9 big metal-working workshops and 4 big heat-treatment nitration workshops.
    • Founded in Shanghai, China 1997,has developed into 5 production bases including Shanghai, Suzhou, Changzhou, Zhoushan and Guangzhou with more than 1000mu area.
    • JWELL MACHINERY (CHANGZHOU) CO., LTD. is another development strategy center of Shanghai JWELL Machinery Co.,ltd, locating at Jiangsu Zhongguan cun technology industrial park, Liyang city, Jiangsu province.
    • We have a high qualified R&D and experienced mechanical and electrical engineer team as well as advanced processing foundation and normative assembly shop.
    Jwell Culture:
    • Jwell Enterprise Spirit: Attentive,Edurung,Quick and Orderly;
    • Jwell Quality Orientation:Excellent performance, Perfect Products;
    • Core Idea:Be honest to people,Be faithful to Jwell.
    Jwell Steel reinforced spiral pipe extrusion line 9

    Changzhou Jwell Machinery Co.,Ltd is another development strategy center of Shanghai Jwell Machinery Co.,ltd,located at Jiangsu zhongguancun Technology Industrial Park, Liyang city, Jiangsu province, a high-tech manufacturer specializing in R&D of plastic extrusion equipment. The factory area is about 400 acres; we have a high qualified R&D and experienced mechanical and electrical engineer team as well as advanced processing foundation and normative assembly workshop. Our enterprise spirit is :Attentive, Enduring, Quick and Orderly. Welcome both new and old customer to visit us for investigation, guidance and cooperation. Welcome to Changzhou, welcome to Jwell!

    Jwell Steel reinforced spiral pipe extrusion line 10


    Jwell Steel reinforced spiral pipe extrusion line 11

     Jwell Steel reinforced spiral pipe extrusion line 12

    Our Services

    All to start and keep good & long-term cooperation with you.

    • We are the largest plastic extrusion manufacturer in China with 18 professional subsidiaries, 9 big metal-working workshops and 4 big heat-treatment nitration workshops.
    • Production capacity:20 set/sets per Month.
    • We  can provide on-site installation and debugging services freely, including operation train and raw material formula , to insure the customer can operate autonomously.
    • Warranty:12 months.

    Jwell Steel reinforced spiral pipe extrusion line 13

    Certifications:

    Jwell Steel reinforced spiral pipe extrusion line 14



    FAQ

    Q1--How much does it cost?

         --Please fill in your specific requirement in the bottom blank and sent to us, so that we could make a detail quotation for you.



    Q2:--I want to know more about your company and your products, how?

          --For more information, please visit our website: www.jwell.cn or www.jwellcz.cn. The best way, of course, is to go to our factory and see our products. Jwell welcomes your coming at any time!



    Q3:-- How about your after-sale service?

         --When the machines are ready and be sent to your factory, we will sent our engineers to your factory to help your worker to do the installation and train your workers. Above all, we have the maintenance engineers all over the world, who are always ready to go to our customer's factory and provide them with the best after-sale service



    Q4:--Where is your factory located?

         --We are in No.118, Shangshang Road, Liyang, Changzhou city, Jiangsu province. welcome to visit us!!!
