Jwell pvc 110-315 extruder machine for sale

 Jwell UPVC Solid Wall pvc plastic pipe

Features & Advantages: PVC Pipe Extrusion Line research & developed by Jwell Machinery Co., features of unique structure, easily control, highly automation and stable performance. Pipes produced by this machine has the moderate rigidity, strength, as well as good flexibility, anti-rot, anti-stress split, and favorable hot melting, make this large diameter pipe considered as the prefer product for water and gas transportation system in cities.

 This picture is just for reference.

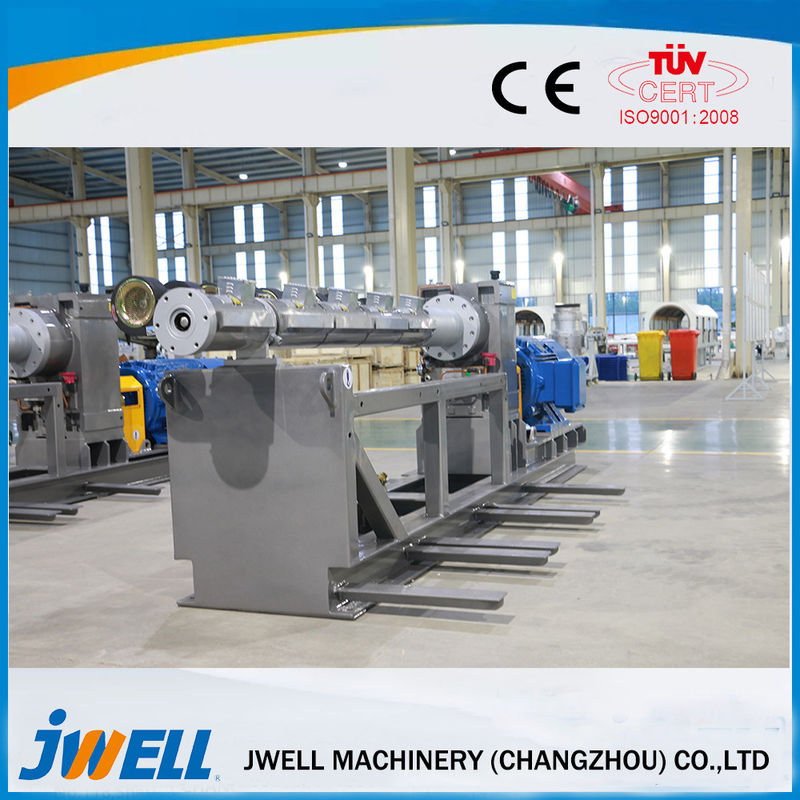

This extruder is used for PVC 110-315 pipe extrusion line. It consists of screw, barrel, driving motor, feeding system and vacuum exhausting system. It has two screws. The diameter of the screw is 80 and 156mm. They are made of 38CrMoAlA and adopts the treatment of Nitrided. Like the screw, the barrel is Nitrided treatment. The barrel has five heating control zones. The whole heating power of it is 36kw. Its cooling system is blower fan and the cooling power is 2.2kw. The type of the gear is Helical gears and the material is 20CrMnTi. Bearings are Chinese famous brand. It has an AC motor with power of 55kw. The motor power of the vacuum exhausting system is 2.2kw with three-phase asynchronous motor working method. The motor power of the feeding system is 0.55kw.

This picture is just for reference.

The mould is used for PVC 75-250 pipe extrusion line. Its mouth die and core die are changeable. It possess 16 heating control zones. The heating power will up to max 75kw. The calibration unit is made of stainless steel.

This picture is just for reference.

The material of the vacuum tank is stainless steel which touch with the water. The vacuum pump is 4kw and water pump is 5.5kw. It is 5.8 meters long. And the stoke is 500mm.

 This haul-off unit is used for PVC 110-315 pipe extrusion line. The method of this haul-off unit having four caterpillars is pneumatic pressing. The length of the caterpillar is 740mm. It uses 2 AC motors with 5.5kw of each.

This picture is just for reference.

This cutter is used for PVC 110-315pipe extrusion line. It is no dust cutting with pneumatic pressing. The moving method of the platform is also a pneumatic way. This cutter is suitable for the pipes with diameter ranged from 110-315. The motor of this cutter is 1.5kw.

 Packaging & Shipping:

• Wooden package for Jwell plastic profile sheet extrusion machine for PVC.
• Jwell produces more than 2000 sets of extrusion machines each year, which has been sold to all over the world, including America, Brazil, Japan, Korea, India, Germany, Turnkey, Malaysia.etc.

Brief Infomation of JWELL MACHINERY CO., LTD

• The largest plastic extrusion manufacturer in China with 18 professional subsidiaries, 9 big metal-working workshops and 4 big heat-treatment nitration workshops.
• Founded in Shanghai, China 1997,has developed into 5 production bases including Shanghai, Suzhou, Changzhou, Zhoushan and Guangzhou with more than 1000mu area.
• JWELL MACHINERY (CHANGZHOU) CO., LTD. is another development strategy center of Shanghai JWELL Machinery Co.,ltd, locating at Jiangsu Zhongguan cun technology industrial park, Liyang city, Jiangsu province.
• We have a high qualified R&D and experienced mechanical and electrical engineer team as well as advanced processing foundation and normative assembly shop.

• Jwell Enterprise Spirit: Attentive,Edurung,Quick and Orderly;
• Jwell Quality Orientation:Excellent performance, Perfect Products;
• Core Idea:Be honest to people,Be faithful to Jwell.

Changzhou Jwell Machinery Co.,Ltd is another development strategy center of Shanghai Jwell Machinery Co.,ltd,located at Jiangsu zhongguancun Technology Industrial Park, Liyang city, Jiangsu province, a high-tech manufacturer specializing in R&D of plastic extrusion equipment. The factory area is about 400 acres; we have a high qualified R&D and experienced mechanical and electrical engineer team as well as advanced processing foundation and normative assembly workshop. Our enterprise spirit is :Attentive, Enduring, Quick and Orderly. Welcome both new and old customer to visit us for investigation, guidance and cooperation. Welcome to Changzhou, welcome to Jwell!

All to start and keep good & long-term cooperation with you.

• We are the largest plastic extrusion manufacturer in China with 18 professional subsidiaries, 9 big metal-working workshops and 4 big heat-treatment nitration workshops.
• Production capacity:20 set/sets per Month.
• We  can provide on-site installation and debugging services freely, including operation train and raw material formula , to insure the customer can operate autonomously.
• Warranty:12 months.
