| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jwell |
| Certification: | CE ISO9001 |
| Model Number: | SJZ55-80 |
| Minimum Order Quantity: | 1 Set/Sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package forJwell PS Foamed Picture Frame Extrusion Line |
| Supply Ability: | 25 Set/Sets per Month Jwell PS Foamed Picture Frame Extrusion Line |
| Condition: | New | Application: | Granules |
|---|---|---|---|
| Plastic Processed: | PVC | Screw Design: | Double-screw |
| Automatic Grade: | Fully Automatic | Voltage: | Customized |
| Power(W): | 22-55kw | Dimension(L*W*H): | 4.2m*1.5m*2.1m |
| Weight: | 4000kg | Name: | Jwell PS Foamed Picture Frame Extrusion Line |
| Diameter Of Screw: | 72-92 | Motor Type: | AC Motor |
| Screw Speed: | 1-34.7 | Motor Power: | 22kw/37kw/55kw |
| Heating Power: | 3-12kw | Capacity: | 60-250kg/h |
| Center Highness: | 800-1200(can Be Adjust) | Raw Material: | PVC |
| Motor Brand: | SIEMENS Brand | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Port: | Shanghai | ||
| High Light: | pvc profile production line,pvc window profile extrusion line |
||

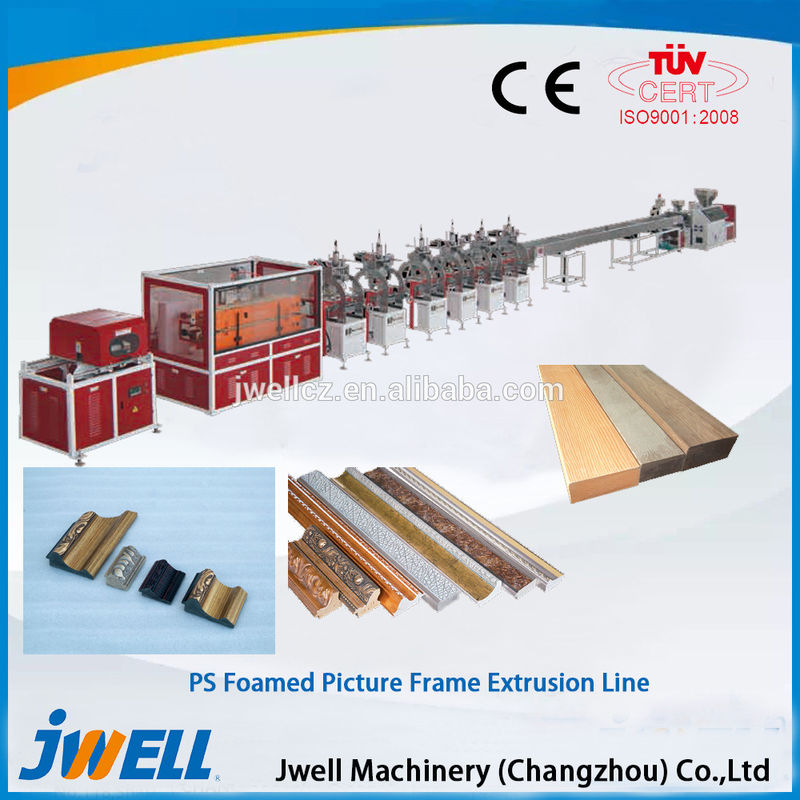

YF Series PS Foam Profile Extrusion Line, consists of single screw extruder and the special co-extruder, with the cooling water tank, hot stamping machine system, haul-off unit, and stacker. This line with imported ABB AC inverter control, imported RKC temperature meter etc. and features of good plasticization, high output capacity, and stable performance etc.The hot stamping machine system combined foreign technology, by the hot stamping embossing method,
transfer the coating layer from the film to the PS foamed profile. The machine with good appearance, stable performance,
accurate & easy operation. By adjust the embossing wheel the machine can work on various of different profiles.
Working together with the main extruder and other extrusion down steam equipments, this line is popular as the latest
developed producing line.
Related Products
By adopting the foreign and domestic advanced technology, we successfully developed the small profile extrusion line.This line consists of Single Screw Extruder, Vacuum Calibration Table, Haul-off Unit, Cutter and Stacker, the producing line features of good plasticization, high output capacity, low power consumption and etc. The main extruder speed controlled by imported AC inverter, and temperature control by Japanese RKC or FUJI temperature meter, vacuum pump and traction gear reducer of the downstream equipment are all good quality products, and also easy maintenance.
PE&PP Wood-Plastic Two Step Extrusion Line
Two-step way is that the wood-plastic composite materials complete in different equipment of mixing, from play, extruding products, mixing the raw material in a certain formula, forming wood-plastic particles in the middle, and then squeezing out products. And nowadays, the two-step way is used currently, application of a wider general use dual-cone-or two-extruder granulation, and then double-cone or single screw extruder extrusion products, mainly used in floor indoor or outdoor,parapets, tray, such as PE plastic extrusion products. Because of the advantages: simple operation, lower requests to the overall technological level and to the matching mold and extrusion equipment than the one-step, and also smaller investment on equipment relatively.
1.Building block type screw and barrel of the extruder, according to the L/D by yourself. It’s fit for all kinds of the material machining for the surface wearable. The temperature of barrel can enactment by oneself each zone.
2.The method of the head cutting is heating cut commonly.
3.The method of cooling remove the material is two class or three class fan remove commonly.
This extrusion line mainly contains conical twin screw extruder 、glue extruder 、vacuum calibration unit 、haul-off unit 、cutter and stacker. It adopts intelligent control system, high automatic system, with feature of stability, easy operating and high efficiency. By changing different types of mold, it can produce all kinds of fast loading wallboard with different types, sizes, shapes, thickness. With rich production experience, JWELL can provide on-site installation and debugging services freely, including operation train and raw material formula, to insure the customer can operate autonomously.
The production line is mainly used for the production of the Great Wall panels, wall panels, partition walls, pinch plate, acoustic panels, stair railing, shutters, decorative, foot line and any other eco- wood plastic productions. The extruder with the unique screw design prevents raw material from high shear or over plasticizing, As a result, products gain significant texture of wood surface, and product with characteristics: no deformation, non-fading, fire prevention, anti-corrosion, anti-moth, anti-aging and anti-UV.
Sander
This machine suits for the thickness sanding, fine sanding and polish the
surface of other various boards.
Transfer printing machine for door
The machine is used for surface design transferring of wood-plastic door,wood-plastic cabinet door board, PVC door and wall board. Using high temperature transferring, this machine can automatically remove dust and have board pre-heating device.
WPC embossing machine
The wood-plastic embossing is mainly used for the pattern of repression of PE\PP\PVC wood plastic profile,sheet surface,it's better for the wood products surface of wood texture.the surface of the embossing can be processed all kinds of wood texture,surface can be hard chrome plating,Roller cavity heating,simple operation and wear-resistant.
Suitable for testing kinds of material and products. Under the climate changes of sunshine, temperature, humidity, condensation etc, In order to test related products and material aging degree. In a short time get discoloration, fading and so on.
Mainly used in testing the impact toughness of hard pla4stic sheet,
pipe, profile, enhance nylo4n, glass, steel, ceramics, cast stone, electr4ical insulation, and other non-metalli4c materials.It is the ideal test 4equipment for chemical industry,
scientific research units, universities and colleges, quality inspection departments and professional manufacturers.
It allows for the measurement of melt mass-flow rate (MFR) and melt volume-flow rate (MVR), melt density test, not only suitable for the high melting temperature engineering plastics, but also for low melting temperature plastics. It is widely used in chemical industry, scientific research units, universities and colleges, quality inspection departments.
Brief Infomation of JWELL MACHINERY CO., LTD
Founded in Shanghai, China 1997,has developed into 5 production bases including Shanghai, Suzhou, Changzhou, Zhoushan and Guangzhou with more than 1000mu area,which is the largest plastic extrusion manufacturer in China with 18 professional subsidiaries, 9 big metal-working workshops and 4 big heat-treatment nitration workshops. JWELL MACHINERY (CHANGZHOU) CO., LTD. is another development strategy center of Shanghai JWELL Machinery Co.,ltd, locating at Jiangsu Zhongguan cun technology industrial park, Liyang city, Jiangsu province and has a high qualified R&D and experienced mechanical and electrical engineer team as well as advanced processing foundation and normative assembly shop.
Jwell is the largest plastic extrusion manufacturer in China with 18 professional subsidiaries, 9 big metal-working workshops and 4 big heat-treatment nitration workshops. Production capacity:20 set/sets per Month.We can provide on-site installation and debugging services freely, including operation train and raw material formula , to insure the customer can operate autonomously.Warranty:12 months.
