Place of Origin: | Jiangsu, China (Mainland) |
Brand Name: | Jwell |
Certification: | CE ISO SGS |
Minimum Order Quantity: | 1 Set/Sets |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden package for Jwell UPVC Solid Wall pvc plastic pipe. |
Supply Ability: | 20 Set/Sets per Month Jwell pvc pipe 20-50 plastic making machine |
Condition: | New | Application: | Pipe |
---|---|---|---|
Plastic Processed: | PVC | Screw Design: | Double-screw |
Automatic Grade: | Fully Automatic | Voltage: | Customized |
Power(W): | 95kw | Dimension(L*W*H): | 4200*1500*2100 |
Weight: | 4000kg | Type: | PVC |
Extruder: | 65/132 | Capacity: | 180-250kg/h |
Length Of Production Line: | 25m | Speed: | 1.2-12m |
Power: | 95kw | Motor Power: | 37kw |
Mould Power: | 11kw | Pressure Degree: | SDR11/SDR17 |
Name: | Jwell Pvc Pipe 20-50 Plastic Making Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Port: | Shanghai | ||
High Light: | pvc pipe production line,hdpe pipe production line |

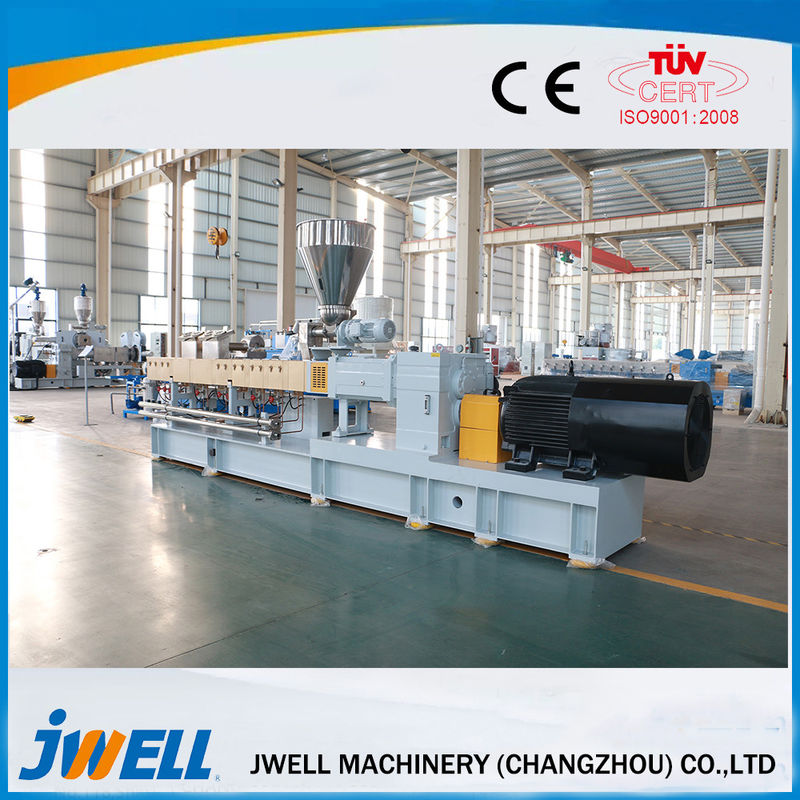

Jwell UPVC Solid Wall pvc plastic pipe
Features & Advantages: PVC Pipe Extrusion Line research & developed by Jwell Machinery Co., features of unique structure, easily control, highly automation and stable performance. Pipes produced by this machine has the moderate rigidity, strength, as well as good flexibility, anti-rot, anti-stress split, and favorable hot melting, make this large diameter pipe considered as the prefer product for water and gas transportation system in cities.
Main Technical Parameter:
Diameter | Extruder | Capacity | Power(kw) |
20-63 | 65/132 | 120-180kg/h | 80kw |
63-160 | 65/132 | 180-250kg/h | 90kw |
160-355 | 80/156 | 350-400 | 180kw |
You may alao interest in the following product:
HDPE Water Supply Pipe, Gas Pipe Energy-saving and High Speed Extrusion Line
This production line adopts the most advanced technology of Europe,it is a new research achievement of energy-saving production line,which is suitable for high speed extrusion of HDPE,PP and other polyolefin pipe.compared with common production line,the energy-saving effect reach on 35%, and the product efficiency increase more than 1 times, thus it is not only saving the cost of site and manpower,but also improving efficiency.This production line has nice appearance,higher automatical degree ,production reliable and stable.
Main Technical Parameter:
Diameter | Extruder | Capacity | Power |
20-75 | 50/38 | 320kg/h | 150kw |
50-250 | 75/38 | 550kg/h | 230kw |
160-450 | 90/38 | 850kg/h | 450kw |
315-630 | 120/38 | 1200kg/h | 630kw |
450-800 | 120/38 | 1200kg/h | 680kw |
800-1000 | 150/38 | 1400kg/h | 815kw |
710-1200 | 150/38 | 1400kg/h | 930kw |
900-1600 | 150/38;75/38 | 1900kg/h | 1200kw |
1200-2000 | 150/38;90/38 | 2200kg/h | 1400kw |
1600-2500 | 150/38;120/38 | 2500kg/h | 1580kw |
2000-3000 | 150/38;120/38 | 2500kg/h | 1580kw |
Common Diameter HDPE Pipe , PP Chemical Usage Pipe and MPP Electrical Wire Protection Pipe Extrusion Line
Advantage:Our company using the development HDPE,PP pipes extrusion technology develops this kind of extrusion line. This line features compact structure, highly automation and stable performance. This line is widely used in producing HDPE water, gas supply pipe, double-anti pipe for mine industries.
Main technical parameters:
Type | Diameter | Extruder | Output capacity(kg/h) | Power(kw) |
JWPEG63 | 20-63MM | 25/25;65/33 | 120-150 | 110 |
JWPEG160 | 63-160MM | 25/25;65/33 | 120-300 | 160 |
JWPEG250 | 75-250MM | 25/25;75/33 | 280-400 | 210 |
JWPEG450 | 160-450MM | 25/25;90/33 | 500-700 | 385 |
JWPEG630 | 315-630MM | 25/25;120/33 | 700-900 | 535 |
