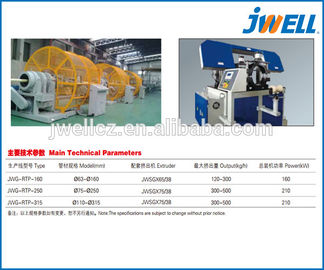

Jwell High Capacity RTP Composite Pipe Extrusion Line

Jwell High Capacity RTP Composite Pipe Extrusion Line:

Performance and feature: The thermoplastic reinforced pipe RTP has three layers: the inner layer is anti- erosion and wearing-resistant PE pipe; the middle layer is reinforced twisting layer (the material is high-intension synthesized fiber, or glass fiber, carbon fiber or fine metal thread); the outer layer is PE for protection use. The most popular reinforce material is Aramid fiber. The pressure of Aramid fiber reinforced pipe is up to 9-14Mpa. The explode pressure can be 40Mpa.The RTP connection technology :The connection method between the RTP and RTP, RTP side and other fittings (such as valve, three direction fittings) is: Electrical welding-hot welding and mechanical press.

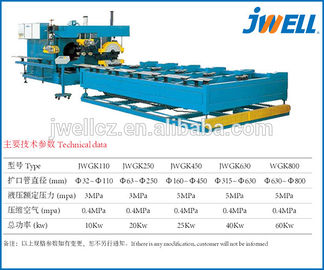

 JWGK Series Automatic PVC Pipe Belling Machine.

Advantage: The machine can be used for the belling of PVC solid wall pipe, PVC double-wall corrugated pipe. The belling type is U type and R type. The control system is from Mitsubishi PLC, stable function. The belling mould is hydraulic driven. The range is Φ32-Φ800.

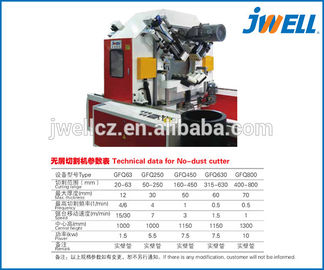

GFQ Series Automatic Pipe No-dust Cutter.

Advantage: Mainly used for cutting the HDPE, PP, PPR, PE-RT pipe . No-dust cutter can protect the environment because there is no dust during the cutting and there is no noise. The cutting surface of the pipe is smooth and elegance. It is suitable for cutting the pipes made by different materials and in different diameters.

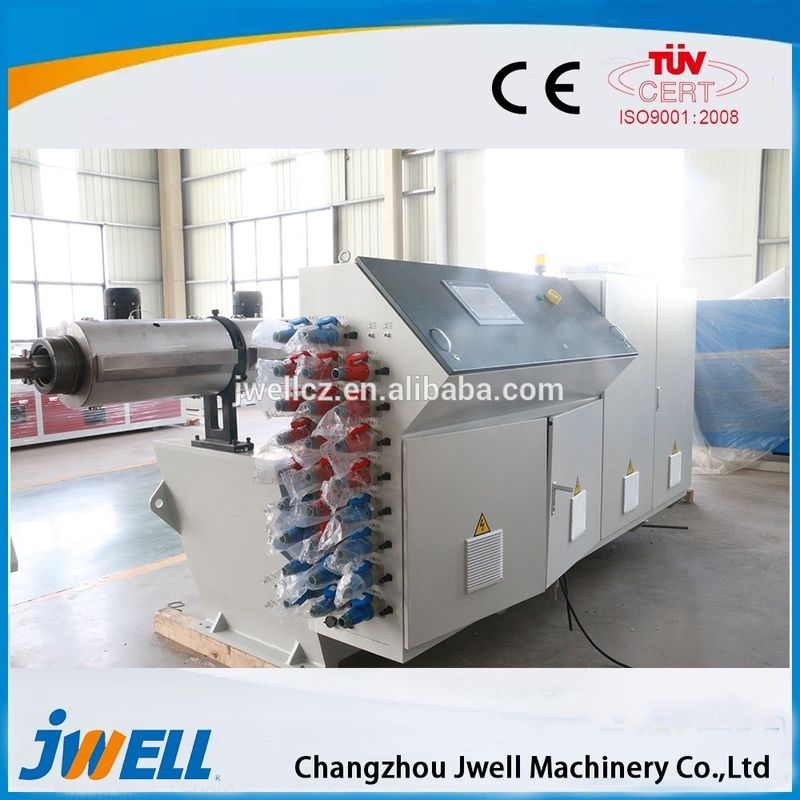

Extruder

Name: YF600 Twin screw extruder

Brand:Jwell

Screw: Jin Hailuo

Type:65/33

Capacity:100-120kg/h

Electrical parts

Power: 37kw
Motor: Siemens
Control Panel: Simens PLC
Electrical Spareparts: Schneider

Frequency convertor: ABB

Haul-off Unit

Quantity of claw: 3

 Haul-off motor：1.5KW x 3 sets
 Imported inverter
Effective Length of haul-off caterpillar: 1800mm
Speed :1.2-20m/min



 Vacuum calibration table

Calibration tanks and basin are made of stainless steel
Vacuum tank length: 8000mm.
Cooling tank: 1800mm
Water pump：3kw+4kw
Vacuum pump: 3kw+4kw

Jwell--The largest plastic extrusion machine manufacturer in the world

Jwell, founded in Shanghai, China 1997,has developed into 5 production bases including Shanghai, Suzhou, Changzhou, Zhoushan and Guangzhou with more than 1000mu area. JWELL is the largest plastic extrusion manufacturer in China with 18 professional subsidiaries, 9 big metal-working workshops and 4 big heat-treatment nitration workshops. Jwell has imported more than 1000 sets of CNC processing and advanced detective equipment from Korea and Japan. Jwell produces more than 2000 sets of advanced production line exported to more than 20 countries in the world every year.

JWELL MACHINERY (CHANGZHOU) CO., LTD

JWELL MACHINERY (CHANGZHOU) CO., LTD. is another development strategy center of Shanghai JWELL Machinery Co.,ltd, locating at Jiangsu Zhongguan cun technology industrial park, Liyang city, Jiangsu province, a high-tech manufacturer specializing in research and development of plastic extrusion equipment. The factory area is of 400 acres; We have a high qualified R&D and experienced mechanical and electrical engineer team as well as advanced processing foundation and normative assembly shop. Our enterprise spirit is "Attentive, Enduring, Quick and Orderly", keeping on exploring of new extrusion field. Mostly welcome to new and old customers to visit us for investigation, guidance and cooperation. We are happy to offer powerful support!

Jwell has imported more than 1000 sets of CNC processing and advanced detective equipments from Korea and Japan.

Shipping

Jwell produces more than 2000 sets of extrusion machines each year, which has been sold to all over the world, including America, Brazil, Japan, Korea, India, Germany, Turnkey, Malaysia.etc.

.
