| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jwell |
| Certification: | CE ISO SGS |
| Model Number: | SJSZ65/132 |
| Minimum Order Quantity: | 1 - 4 Sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package for Jwell PVC (WPC) fast loading wallboard extrusion line |
| Supply Ability: | 20 Set/Sets per Month Jwell high automation degree PVC (WPC) fast loading wallboard |
| Condition: | New | Application: | Profile |
|---|---|---|---|
| Plastic Processed: | PVC | Screw Design: | Double-screw |
| Automatic Grade: | Fully Automatic | Voltage: | Customized |
| Power(W): | 37kw | Dimension(L*W*H): | 4200*1500*2100 |
| Weight: | 4000kg | Name: | Jwell PVC (WPC) Fast Loading Wallboard Extrusion Line |
| Specifications: | 4200*1500*2100 | Power: | 37kw |
| Water Consumption: | 6m3/h | Gas Consumption: | 0.6Mpa |
| Capacity: | 200-300kg/h | Motor: | SIEMENS Brand |
| Gear Box: | Jiangyin | Material: | 38CrMoAlA |
| Warranty: | 12months | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Port: | Shanghai | ||
| High Light: | pvc extrusion line,pvc window profile extrusion line |
||
This extrusion line mainly contains conical twin screw extruder 、glue extruder 、vacuum calibration unit 、haul-off unit 、cutter and stacker 。 It adopts intelligent control system, high automatic system, with feature of stability, easy operating and high efficiency. By changing different types of mold , it can produce all kinds of fast loading wallboard with different types ,sizes ,shapes, thickness. With rich production experience, JWELL can provide on-site installation and debugging services freely, including operation train and raw material formula , to insure the customer can operate autonomously.
The feature : Fast loading wallboard is also called bamboo fiber integrated metope which use bamboo fiber as base material, resin material use as the surface craft material is widely used in metope adornment material of family life 、project and so on, its surface color effect can reach traditional wallpaper, besides it protects the wall . Regards as a new product is gradually replacing wall paint wallpaper metope adornment material .Fast loading wallboard is a new type decoration material with advantage like environment friendly 、heat insulation、damp proof、heat preservation、fireproof、sound insulation、fashion ,etc element , portable, easy to assemble. So it can solve the problem of the metope easy to mildew and metope dirty wash easily, meanwhile it also reach requirement of engineering buildings fire protection.

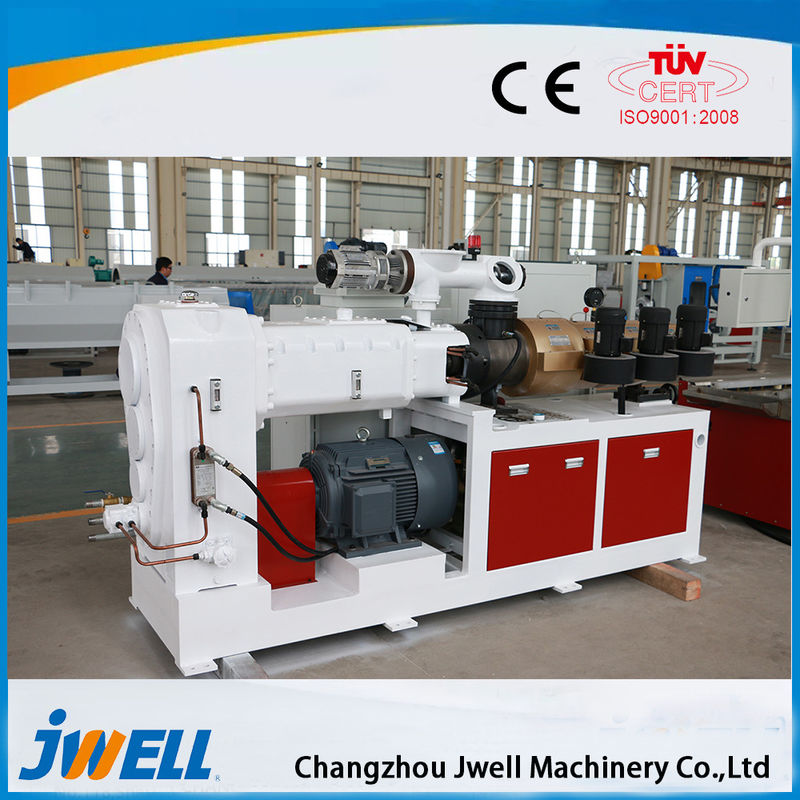

Name: YF600 Twin screw extruder
Brand:Jwell
Screw: Jin Hailuo
Type:65/132
Capacity:200kg/h
Power: 37kw
Motor: Siemens
Control Panel: Simens PLC
Electrical Spareparts: Schneider
Frequency convertor: ABB
Quantity of caterpillar: 2 lines.
Haul-off motor：4KW x 2 sets
Imported inverter
Length of haul-off caterpillar: 2400mm; Effective length of Caterpillar: 2000mm
Rubber block :400X45X35
Effective width of caterpillar: 400mm × 2
Haul-off speed：0.5~2.0 m/min
Calibration tanks and basin are made of stainless steel
Table length: 6000mm.
Table width: 1800mm
Distance between aluminum track：1100mm
Vacuum pump: 11KW x 2set, 5.5KW x 2set. (Water should be exhausted in case of frozen)
Vacuum degree：0 -0.09 Mpa
Water pump power and qty: 5.5kw ,1.5 kw 1 set for each
Jwell, founded in Shanghai, China 1997,has developed into 5 production bases including Shanghai, Suzhou, Changzhou, Zhoushan and Guangzhou with more than 1000mu area. JWELL is the largest plastic extrusion manufacturer in China with 18 professional subsidiaries, 9 big metal-working workshops and 4 big heat-treatment nitration workshops. Jwell has imported more than 1000 sets of CNC processing and advanced detective equipment from Korea and Japan. Jwell produces more than 2000 sets of advanced production line exported to more than 20 countries in the world every year.
JWELL MACHINERY (CHANGZHOU) CO., LTD. is another development strategy center of Shanghai JWELL Machinery Co.,ltd, locating at Jiangsu Zhongguan cun technology industrial park, Liyang city, Jiangsu province, a high-tech manufacturer specializing in research and development of plastic extrusion equipment. The factory area is of 400 acres; We have a high qualified R&D and experienced mechanical and electrical engineer team as well as advanced processing foundation and normative assembly shop. Our enterprise spirit is "Attentive, Enduring, Quick and Orderly", keeping on exploring of new extrusion field. Mostly welcome to new and old customers to visit us for investigation, guidance and cooperation. We are happy to offer powerful support!
Jwell produces more than 2000 sets of extrusion machines each year, which has been sold to all over the world, including America, Brazil, Japan, Korea, India, Germany, Turnkey, Malaysia.etc.
.
1. How much does it cost?
Answer: Please fill in your specific requirement in the bottom blank and sent to us, so that we could make a detail quotation for you.
2, I want to know more about your company and your products, how?
Answer: For more information, please visit our website: www.jwell.cn or www.jwellcz.cn. The best way, of course, is to go to our factory and see our products. Jwell welcomes your coming at any time!
3, How about your after-sale service?
Answer: When the machines are ready and be sent to your factory, we will sent our engineers to your factory to help your worker to do the installation and train your workers. Above all, we have the maintenance engineers all over the world, who are always ready to go to our customer's factory and provide them with the best after-sale service
4,Where is your factory located?
Answer: We are in No.118, Shangshang Road, Liyang, Changzhou city, Jiangsu province. welcome to visit us!!!
.......
