| Place of Origin: | CHINA |
| Brand Name: | JWELL |
| Certification: | CE ISO |
| Model Number: | HDPE 110 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | CNY USA EUR |
| Packaging Details: | WOODEN CASE by International shipping standards |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1 LINE 65 DAY |
| Name: | YF600 Twin Screw Extruder | Screw: | Jin Hailuo |
|---|---|---|---|
| Brand: | Jwell Extruder | Type: | JWELL HDPE 110 Pipe Extrusion Line |
| Capacity: | 100-120 Kg / Hour | Material: | HDPE |
| High Light: | 120Kg H Hdpe Pipe Extruder,120Kg H Hdpe Pipe Extrusion Machine,jwell pipe extrusion machine |
||

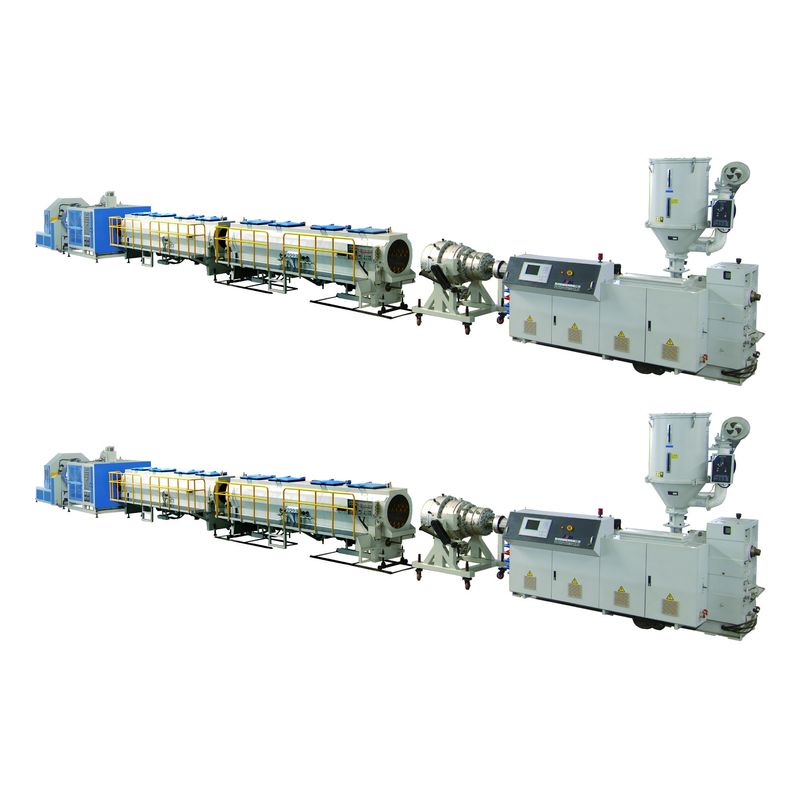

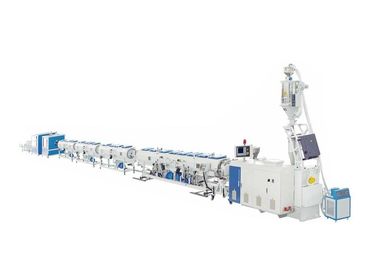

The large diameter HDPE / MDPE pipe extrusion line research & machine developed by Jwell has unique structure, easy control, high automation and stable performance. Produced by pipe This machine has moderate rigidity, strength as well as good flexibility, decay resistance, anti-stress splitting, and advantageous hot melt, this large diameter pipe is regarded as a product preferred water and gas transportation system in the city. Hyundai Development Special for 2-layer or 3-layer spiral mold double anti-pipe extrusion. This pipe also owns the same co-extruded wall thickness, inner and outer wall anti-material (flammable, anti-static), core layer HDPE wall, reasonably reduce the cost of double anti-material , Corresponding to reduce the cost of the whole product.
This production line adopts the most advanced technology of Europe, it is a research result production line of the Ministry of New Energy, which is suitable for speed extrusion HDPE, PP and other polyolefin tubes. Compared to general production line, the energy saving effect reaches 35%, and the product efficiency is increased more than once, thus not only saving the cost of site and labor, but also improving the efficiency. This production line has a nice appearance, automatic degree, production reliability and stability.
Using our developed HDPE, PP pipe extrusion technology development of this kind of extrusion line. Features of this line Compact structure, high automation and stable performance. This line is widely produced in HDPE water, gas supply pipe, double anti-pipe mining industry.
Name: YF600 twin screw extruder
Brand: Jwell
Screw: Jin Hailuo
Type : 65/33
Capacity : 100-120 kg / hour
Power: 37kw
Motor: Siemens
Control Panel: Siemens PLC
Electric Spare Parts : Schneider
Frequency converter : ABB
Quantity claws : 3
Long distance off Motor : 1.5KW × 3 sets
imported inverter
effective length of the long distance off caterpillar : 1800 mm
Speed : 1.2-20 meters / min
Calibration tank and basin are stainless steel
vacuum tank length : 8000 mm.
Cooling tank : 1800mm
water pump : 3kw + 4kw
vacuum pump : 3kw + 4kw
Established in Jwell, Shanghai, China 1997, developed etc. 5 production bases in Shanghai, Suzhou, Changzhou, Zhoushan and Guangzhou with more than 1000mu area. JWELL is China's largest plastic extrusion manufacturer 18 professional subsidiary, 9 big metal work workshop and 4 big heat treatment nitration workshop. Jwell imports more than 1000 sets of cnc processing and advanced detective equipment from Korea and Japan. Jwell produces more than 2000 sets of advanced production exports to more than 20 countries in the world every year.
JWELL Machinery (Changzhou) Co., Ltd. Is another development strategy center located in Shanghai JWELL Machinery Co., Ltd., Jiangsu Province, Zhongguan cun Technology Industrial Park, Liyang City, Jiangsu Province, high-tech manufacturer specializing in research and development of plastic extrusion equipment. The factory area is 400 acres; we have a highly qualified R & D and an experienced mechanical and electrical engineer team as well as advanced processing basics and normative assembly shops. Our corporate spirit remains "attentive, lasting, quick and orderly", exploring new extrusion fields. Welcome survey, guidance and cooperation mainly to old and new customers who visit us. We provide strong support!
