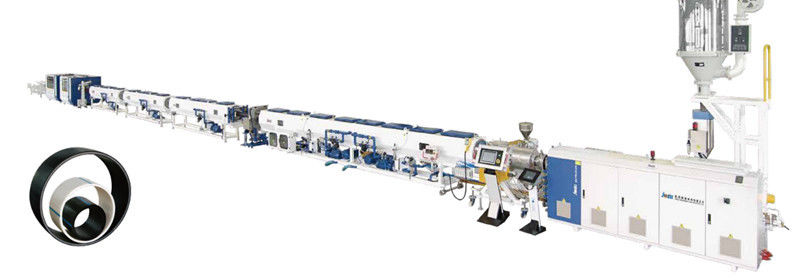

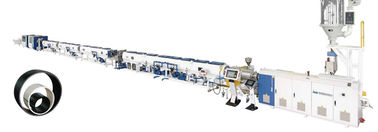

Energy-Saving and High Speed Extrusion line for HDPE water pipe/gas pipe

Energy-Saving and High Speed Extrusion line for HDPE water pipe/gas pipe

    • Energy-Saving and High Speed Extrusion line for HDPE water pipe/gas pipe
    • Energy-Saving and High Speed Extrusion line for HDPE water pipe/gas pipe
    • Energy-Saving and High Speed Extrusion line for HDPE water pipe/gas pipe
    • Energy-Saving and High Speed Extrusion line for HDPE water pipe/gas pipe
    • Energy-Saving and High Speed Extrusion line for HDPE water pipe/gas pipe
  • Energy-Saving and High Speed Extrusion line for HDPE water pipe/gas pipe

    Product Details:

    Place of Origin: China
    Brand Name: Jwell
    Certification: CE ISO
    Model Number: JWS 65/33

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: Negotiable
    Packaging Details: wooden package
    Delivery Time: 60 days
    Supply Ability: 25 SET PER MONTH
    Contact Now
    Detailed Product Description
    Material: HDPE Color: Customized
    Screw Design: Single Screw Screw Type: JWS 65/33
    Automation: Automatic Condition: New
    Transportation Package: Wooden Package Size: 4200*1500*2100
    Line Speed: 1.2-12m/min Capacity: 150-220kg/h
    Motor Power: 45kw Production Diameters: 20-63mm
    High Light:

    plastic pipe production line

    ,

    hdpe pipe production line



    HDPE Water Supply Pipe, Gas Pipe Energy-saving and High Speed Extrusion Line
    This production line adopts the most advanced technology of Europe,it is a new research achievement of energy-saving production line,which is suitable for high speed extrusion of HDPE,PP and other polyolefin pipe.compared with common production line,the energy-saving effect reach on 35%, and the product efficiency increase more than 1 times, thus it is not only saving the cost of site and manpower,but also improving efficiency.This production line has nice appearance,higher automatical degree ,production reliable and stable.

    Energy-Saving and High Speed Extrusion line for HDPE water pipe/gas pipe 0



    Type Diameter(mm) Extruder Main motro power(kw) Capacity(kg/h)
    JWPEG-63 Φ20-Φ63 JWS65/33 45/55/75/90 120-200
    JWPEG-110 Φ20-Φ110 JWS65/33 45/55/75/90 120-200
    JWPEG-160 Φ63~Φ160 JWS65/33 45/55/75/90 120-200
    JWPEG-250 Φ75~Φ250 JWS75/33 75/90/110/132 200-350
    JWPEG-315 Φ90-Φ315 JWS75/33 75/90/110/132 200-350
    JWPEG-450 Φ160~Φ450 JWS90/33 110/132/160/185/250 350-550
    JWPEG-630 Φ315~Φ630 JWS120/33 355/400 1000-1300

    This picture is just for reference.

    This extruder is used for PE20-63 pipe extrusion line. It consists of screw, barrel, gearbox and driving motor. The diameter of the screw is 65mm. It is made of 38CrMoAlA and adopts the treatment of Nitrided. The barrel is made of 38CrMoAlA. Like the screw, it is Nitrided treatment. The barrel has six heating control zones. The whole heating power of it is 18.5kw. Its cooling system is brower fan and the cooling power is 1.25kw. The matrial of the house is QT200. The type of the gear is Helical gears and the material is 20CrMnTi. It uses the Quenching of the gear surface. Bearings are Chinese famous bearings. Its lubricating system is press system. At the same time, its cooling system is separate. The method of the feeding block is water cycle. The material is Q235. Then it is an DC motor. The power of it is 55kw.





    The 25/25 single screw extruder is for color strip. The diameter of its screw is 25mm. It is Nitrided treatment. The material of the barrel is 38CrMoAlA. It has two heating control zones. Each heating power is 1.8kw. The parts of this kind of gearbox is as the same as the gearbox in the extruder. But Lubricating system is Splashing system. Also its feeding block is like the feeding block in extruder. It has an AC motor with the power of 1.5KW.



    Energy-Saving and High Speed Extrusion line for HDPE water pipe/gas pipe 1

    This picture is just for reference.

    The mould is spiral type. Its mouth die and core die are changeable. It possess 6 heating control zones. The heating power will up to max 11kw. The calibration unit is high-quality with resistance copper. The vacuum pump is 5.5kw and the water pump is 7.5kw. It is 5.8 meters long. And the stoke is 500mm.



    Energy-Saving and High Speed Extrusion line for HDPE water pipe/gas pipe 2

    This picture is just for reference.
    The cooling tank is stainless steel. The method of the cooling tank is spraying. And each set water pump is3kw. The length of it is also 1.5m.

    Energy-Saving and High Speed Extrusion line for HDPE water pipe/gas pipe 3



    This picture is just for reference.

    This haul-off unit with pneumatic pressing is used for PE20-63 pipe extrusion line. The method of this haul-off unit having six caterpillars is rubber block caterpillar. The length of the caterpillar is 2000mm. It uses AC motors with 1.5kw of each.



    Energy-Saving and High Speed Extrusion line for HDPE water pipe/gas pipe 4



    This picture is just for reference.

    This cutter is used for PE20-63pipe extrusion line. It is no dust cutting with pneumatic pressing. The moving method of the platform is also a pneumatic way. This cutter is suitable for the pipes with diameter ranged from 20-63mm. The motor of this cutter is 1.1kw.
