Place of Origin: | Jiangsu, China (Mainland) |
Brand Name: | Jwell |
Certification: | CE ISO9001 |
Minimum Order Quantity: | 1 Set/Sets |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden package forJwell hot sale PVC WPC foaming co-extrusion semi- skining extrusion line |
Supply Ability: | 25 Set/Sets per Month Jwell semi-skinning foam board ideal substitute for wood, |
Condition: | New | Application: | Profile |
---|---|---|---|
Plastic Processed: | PVC | Screw Design: | Double-screw |
Automatic Grade: | Fully Automatic | Voltage: | Customized |
Power(W): | 75kw | Dimension(L*W*H): | 4.2m*1.5m*2.4m |
Weight: | 4000kg | Name: | Jwell Pvc Semi-skinning Foam Board |
Production Width: | 1220mm | Extruder Type: | SJZ80/156 |
Motor Power: | 75kw | Type: | YF1220 |
Output(kg/h): | 400kg/h | Cooling Water: | 9 |
Compressor Air: | 0.8 | Raw Material: | PVC |
Motor: | SIEMENS Brand | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
Port: | Shanghai | ||
High Light: | wpc board production line,wpc pvc foam board machine |
PVC foaming board and WPC foaming board application:
Transportation industrial: Ship, plane, bus, chamber of train, roofing, core layer, inner decoration board. Construction and decoration industrial: outer wall board, inner decoration board, housing, office, public construction board, furniture. Cupboard, roofing. Adopting printing, film coating and thermo-embossing equipment, will get all kinds of emulation wooden product.This extrusion line is made according to the features of free foamed board and skinning foamed board by using the extrusion system for free foamed board machine and the downstream equipment for skinning foamed board. The product produced by this machine has the features of smooth surface, low density, and the surface hardness of the product is between the skinning foamed board and free foamed board. The investment of this machine is close to the investment of free foamed board extrusion line, which makes it easy for market promotion.
Mode
|
Skinning foaming board extrusion line
|
Co-extrusion foamed board extrusion line
|
Products Width
|
1220-1600mm
|
1220-1600mm
|
Products Thickness
|
5-20mm
|
3-20mm
|
Extruder Specification
|
SJZ80/156
|
SJZ65/132,SJZ80/156
|
Capacity
|
400Kg/h
|
450kg/h
|
Main Motor Power
|
75Kw
|
37KW/75KW
|
1. Excellent water resistance, the bending strength and stiffness will not change after immersing in water for 30days.
2. Excellent antisepsis; as non-absorbent, it will not rot and has a very good quality of corrosion resistance, neither does it has termites harmless.
3. Truly green & environment-friendly, no release of formaldehyde and can be recycled. It can save the nature wood resources which was also called revolutionary green environmental newly material.
4. Anti-crash. The fixing ability of wood screw is very strong, which is 4 times than wood-dust board, and 5 times than MDF(medium density fiberboard).
5. It can be used as an outdoor sheet for long time because of its well anti-ultraviolet function and good capability even in the temperature of minus 30 degree.
Item
|
Wood material
|
Plastic material
|
Wood-plastic material
|
g/cm3
|
0.8-1.1
|
0.9-1.1
|
0.7-1.2
|
Rigid and carrying capacity
|
High
|
Low
|
High
|
Processing capacity
|
Easy
|
Not easy
|
Easy
|
Durable
|
Limited
|
High
|
High
|
Bibulous capability
|
High
|
No sobbing
|
No sobbing
|
Sunlight endurance
|
Good
|
Not good
|
Good
|
Acid and alkali wearable
|
Bad
|
Good
|
Good
|
Environmental wearable
|
Not good
|
Good
|
Good
|
Maintenance
|
Convenience
|
Not good
|
Convenience
|
Recycling
|
Bad
|
Partly Can be recycled
|
100% can be recycled
|
Security
|
Bad
|
Good
|
Good
|
Structure flexible
|
High
|
Low
|
Highest
|
For many natural plant fibers such as wood, bamboo, crop stalks, etc, which can be used to squeeze the raw materials quality, must be a process crushing, milling, screening, drying, with mixed, and other pretreatment process to improve the defects and deficiencies of single material in the course of the extrusion. The fiber should be of appropriate particle size in the process, and then join them with coloring agent, lubricants, coupling agent or foam, and other additives of appropriate amount, put them in a high-speed mixed units that they can be fully mixed and then do further precipitation, to meet the requirements suitable for extrusion.
SJZ Series Counter Rotation Conical Twin-screw Pelletizing Extruder
This pelletizing machine is composed by a conical twin-screw extruder and the correspondingly pelletizing downstream equipment, it is suitable for the pelletizing of PVC, PE raw material with wood powder or other additives. The pellets produced by this machine is evenly, solid, elegance. The palletizing downstream equipment is the die face cutter, air transferring unit, vibration separating and cooling unit. This palletizing downstream equipment has the features of high automation.
Model
|
mm
|
Power of main motor(KW)
|
Capacity
|
SJZ80
|
80/156
|
55
|
280-300
|
SJZ92
|
92/188
|
110
|
380-500
|
JWE Series Co-rotation Parallel Twin-screw Pelletizing Extruder
1. Building block type screw and barrel of the extruder, according to the L/D by yourself. It's fit for all kinds of the material machining for the surface wearable. The temperature of barrel can enactment by oneself each zone.
2. The method of the head cutting is heating cut commonly
3. The method of cooling remove the material is two class or three class fan remove commonly
Model
|
mm
|
Power of main motor(KW)
|
Capacity
|
JWE75
|
72
|
110
|
350-450
|
JWE92
|
92
|
200
|
500-800
|

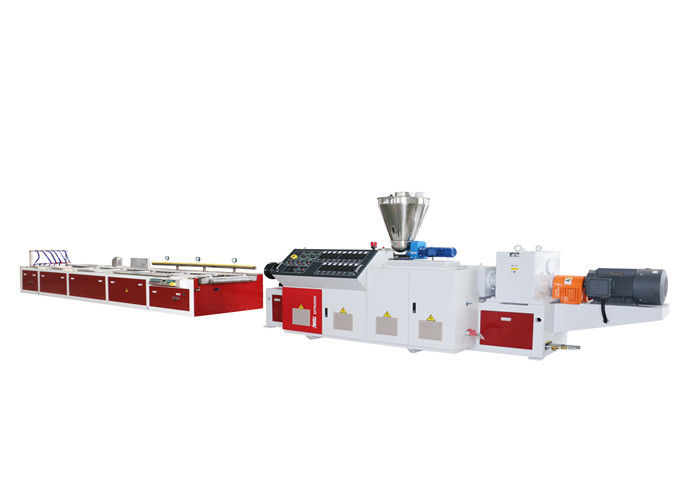

This extrusion line mainly contains conical twin screw extruder ,glue extruder ,vacuum calibration unit ,haul-off unit ,cutter and stacker. It adopts intelligent control system, high automatic system, with feature of stability, easy operating and high efficiency. By changing different types of mold, it can produce all kinds of fast loading wallboard with different types, sizes, shapes, thickness. With rich production experience, JWELL can provide on-site installation and debugging services freely, including operation train and raw material formula, to insure the customer can operate autonomously.
The feature : Fast loading wallboard is also called bamboo fiber integrated metope which use bamboo fiber as base material, resin material use as the surface craft material is widely used in metope adornment material of family life ,project and so on , its surface color effect can reach traditional wallpaper, besides it protects the wall . Regards as a new product is gradually replacing wall paint ,wallpaper metope adornment material .Fast loading wallboard is a new type decoration material with advantage like environment friendly ,heat insulation,damp-proof,heat preservation,fireproof,sound insulation,fashion ,element , portable, easy to assemble. So it can solve the problem of the metope easy to mildew and metope dirty wash easily, meanwhile it also reach requirement of engineering buildings fire protection .
Production width(mm)
|
180
|
300/400
|
600
|
800
|
Extruder type
|
51/105
|
65/132
|
80/156
|
80/156
|
Motor power
|
22kw
|
37kw
|
55kw
|
55kw
|
Auxiliary Type
|
180
|
300/400
|
600
|
800
|
Capacity
|
80-100kg
|
150-200kg
|
150kg
|
200kg
|
Cooling water
|
7m3/h
|
8m3/h
|
9m3/h
|
10m3/h
|
Compressor air
|
0.6
|
0.6
|
0.6
|
0.6
|
The production line is mainly used for the production of the Great Wall panels, wall panels, partition walls, pinch plate, acoustic panels, stair railing, shutters, decorative, foot line and any other eco- wood plastic productions. The extruder with the unique screw design prevents raw material from high shear or over plasticizing, As a result, products gain significant texture of wood surface, and product with characteristics: no deformation, non-fading, fire prevention, anti-corrosion, anti-moth, anti-aging and anti-UV.
Production width
|
108
|
180
|
240
|
300
|
Extruder type
|
45/25
|
65/25;75/25
|
90/25
|
120/25
|
Motor power
|
11kw
|
22/30kw
|
55kw
|
55kw
|
Type
|
YF108
|
YF180
|
YF240
|
YF300
|
Capacity(kg/h)
|
20
|
50/70
|
90
|
150
|
Cooling water(m3/h)
|
7
|
7
|
8
|
9
|
Compressor air(m3/h)
|
0.5
|
0.6
|
0.8
|
0.8
|
Model
|
YF800
|
YF1000
|
YF1250
|
Max Width of product (mm)
|
800
|
1000
|
1250
|
Extruder model
|
SJZ80/156
|
SJZ92/188
|
SJZ92/188
|
Extruder power (KW)
|
55
|
132
|
132
|
Max of extrusion capacity (Kg/h)
|
280
|
600
|
600
|
Cooling water (m3 /h)
|
12
|
15
|
18
|
Compressed air (m3 /min)
|
0.8
|
1
|
1.2
|
