| Place of Origin: | Made in China |
| Brand Name: | JWELL |
| Certification: | CE＆ISO＆SGS |
| Model Number: | JWZ-BM02D/05D/12D/20D |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | The wooden case |
| Delivery Time: | 90 work days |
| Payment Terms: | T/T, L/C |
| Condition: | New | Plastic Processed: | HDPE、PP |
|---|---|---|---|
| Screw Design: | Single Screw | Automatic Grade: | Fully Automatic |
| Place Of Origin: | Jiangsu, China (Mainland) | Brand Name: | Jwell |
| Voltage: | Customized | Certification: | CE ISO SGS |
| Motor: | SIEMENS Brand | Colour: | Customized |
| After-sales Service: | Field Installation, Comm Ssioning And Training, Online Supprot,.. | Warranty: | 1 Year, 12 Months |
| High Light: | blow molding equipment,extruder blowing machine |
||

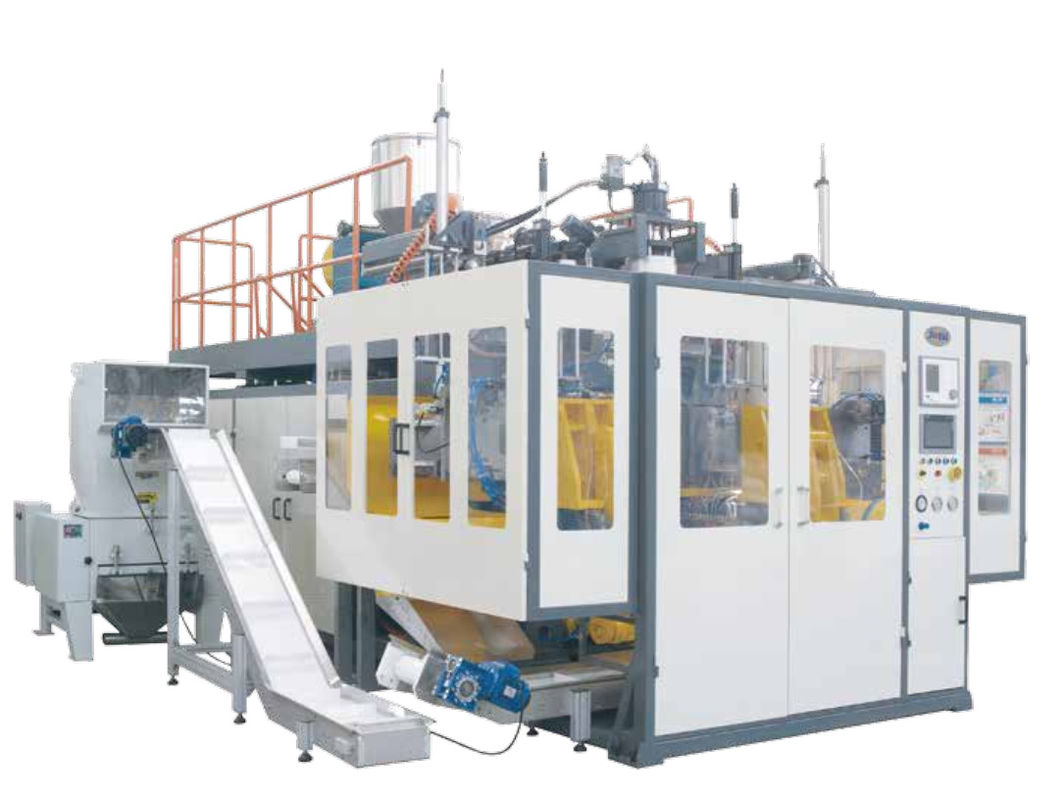

Performance and advantages

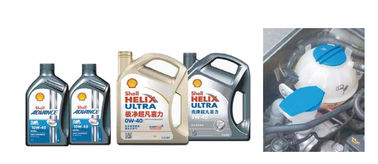

·Suitable for producing 1-5L different size of gear oil bottle, lubrication oil bottle, cooling water tank etc.
·Optional multi-layer co-extrusion.
·Optional view strip line system.
·According to the product size,select different cavity of die head.
·According to the different material,optional JW-DB single station hydraulic screen-exchanger system.
·According to customer's requirement,optional auto-deflashing on line,scrap conveying on line,finished product conveying on line.
| Model | Unit | BM05D | BM12D | BM20D |
| Max product volume | L | 5 | 12 | 20 |
| Dry cycle | Pc/h | 700*2 | 600*2 | 600*2 |
| Die head structre | Continuous type | |||
| Main screw dianmeter | mm | 75 | 90 | 90 |
| Max plasticizing capacity(PE) | kg/h | 90 | 160 | 160 |
| Driving motor | Kw | 30 | 45 | 45 |
| Oil pump motor power | Kw | 11 | 15 | 15 |
| Clamping force | KN | 70 | 120 | 160 |
| Space between platen | mm | 150-510 | 240-640 | 280-680 |
| Platen size W*H | mm | 350*400 | 450*500 | 500*520 |
| Max mould size | mm | 360*400 | 500*520 | 560*520 |
| Platen moving stroke | mm | 450/520 | 600/650 | 650 |
| Heating power of die head | Kw | 7.5 | 10 | 12.5 |
| Machine dimension L*W*H | M | 3.7*3.1*2.7 | 4.2*3.2*3.0 | 4.3*3.2*3.1 |
| Machine weight | T | 8.5 | 12 | 14 |
| Total power | Kw | 60 | 90 | 93 |
FAQ
Q1--How much does it cost?
--Please fill in your specific requirement in the bottom blank and sent to us, so that we could make a detail quotation for you.
Q2:--I want to know more about your company and your products, how?
--For more information, please visit our website: www.jwell.cn or www.jwellcz.cn. The best way, of course, is to go to our factory and see our products. Jwell welcomes your coming at any time!
Q3:-- How about your after-sale service?
--When the machines are ready and be sent to your factory, we will sent our engineers to your factory to help your worker to do the installation and train your workers. Above all, we have the maintenance engineers all over the world, who are always ready to go to our customer's factory and provide them with the best after-sale service
Q4:--Where is your factory located?
--We are in No.118, Shangshang Road, Liyang, Changzhou city, Jiangsu province. welcome to visit us!!!
After-sale service
1,The guarantee period is 1 year and service is available lifelong.
2,Our expert will answer any inquiry within 24-48 hours and it will be solved as soon as possible.
3,The customer can send the engineer to our JWELL with training.
4, The Seller supplies the complete technical support documents and the relative drawings of the electric components written in Chinese and English.
5, The seller can send enough technicians to the Buyer’s company for installation and testing the lines.
