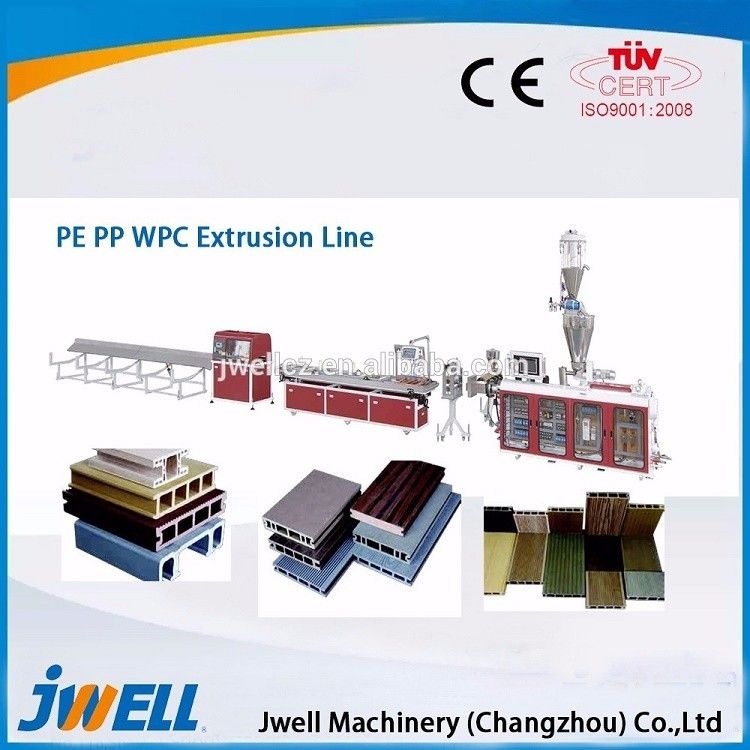

PVC/PP/PE Wood Plastic Sheet/Plate Production Line WPC production line, extruder, plastic machine

PVC/PP/PE Wood Plastic Sheet/Plate Production Line WPC production line, extruder, plastic machine

    • PVC/PP/PE Wood Plastic Sheet/Plate Production Line WPC production line, extruder, plastic machine
  • PVC/PP/PE Wood Plastic Sheet/Plate Production Line WPC production line, extruder, plastic machine

    Product Details:

    Place of Origin: Jiangsu, China (Mainland)
    Brand Name: Jwell
    Certification: CE ISO SGS
    Model Number: JWS65

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 - 4 Sets
    Price: Negotiable
    Packaging Details: Wooden package for Jwell plastic profile sheet extrusion machine for PVC
    Supply Ability: 20 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Condition: New Application: Profile
    Plastic Processed: PVC Screw Design: Double-screw
    Automatic Grade: Fully Automatic Voltage: Customized
    Power(W): 30/22kw Dimension(L*W*H): 4200*1500*2100
    Weight: 4000kg Name: PVC/PP/PE Wood Plastic Sheet/Plate Production Line WPC Production Line
    Material: 38CrMoAlA Motor: SIEMENS Brand
    Type: YF180 Max. Width Of Product: 180mm
    Cooling Water: 7m3/h Compressor Air: 0.6m3/min
    Warranty: 12 Months Color: Customizable
    Raw Material: PVC Powder After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Port: Shanghai
    High Light:

    pvc profile production line

    ,

    pvc window profile extrusion line

    PVC/PP/PE Wood Plastic Sheet/Plate Production Line WPC production line, extruder, plastic machine

    Product Description

    Main Technical Parameter:

    ModelYF50YF108YF180YF240YF300
    Max. Width of Product(mm)50108180240300
    Extruder ModelJWS 45JWS 50JWS 65JWS 90JWS 120
    Power(kw)15/1122/18.530/2255/4590/75
    Cooling Water(m³/h)55778
    Compressor Air(m³/min)0.60.60.60.60.6
    Note:The specifications are subject to change without prior notice.



    Product Characteristics:

    • Mainly consists of single-screw extruder, vacuum calibration table, haul-off unit, cutter and stacker.
    • By adopting the foreign and domestic advanced technology, we successfully developed the small profile extrusion line.
    • Good plasticization, high output capacity, lower power consumption and etc.
    • The main extruder speed controlled by imported AC inverter, and temperature control by Japanese RKC temperature meter, vacuum pump and traction gear reducer od the down stream equipment are all good quality products, and also easy maintenance.
    Product Pictures:

    PVC/PP/PE Wood Plastic Sheet/Plate Production Line WPC production line, extruder, plastic machine 0

    PVC/PP/PE Wood Plastic Sheet/Plate Production Line WPC production line, extruder, plastic machine

    Related Extrusion Line:

    PVC/PP/PE Wood Plastic Sheet/Plate Production Line WPC production line, extruder, plastic machine 1

    Cross door plate extrusion line

    PVC/PP/PE Wood Plastic Sheet/Plate Production Line WPC production line, extruder, plastic machine 2

    PVC single-screw WPC(foaming) extrusion line

    PVC/PP/PE Wood Plastic Sheet/Plate Production Line WPC production line, extruder, plastic machine 3

    PVC wood-plastic quick assembling board extrusion line



    Product Accessories:

    PVC/PP/PE Wood Plastic Sheet/Plate Production Line WPC production line, extruder, plastic machine 4

    Extruder

    Name: YF180 single screw extruder

    Brand:Jwell

    Screw: Jin Hailuo

    Type:65

    Max. Width of Product:180mm

    Electrical parts

    Power: 30/22kw
    Motor: Siemens
    Control Panel: Simens PLC
    Electrical Spareparts: Schneider

    Frequency convertor: ABB

    PVC/PP/PE Wood Plastic Sheet/Plate Production Line WPC production line, extruder, plastic machine 5
    PVC/PP/PE Wood Plastic Sheet/Plate Production Line WPC production line, extruder, plastic machine 6

    800 Haul-off Unit

    Quantity of caterpillar: 2 lines.

    Haul-off motor:4KW x 2 sets
    Imported inverter
    Length of haul-off caterpillar: 2400mm;

    Effective length of Caterpillar: 2000mm

    Rubber block :400X45X35
    Effective width of caterpillar: 400mm × 2
    Haul-off speed:0.5~2.0 m/min

    YFD1000 Vacuum calibration table

    Calibration tanks and basin are made of stainless steel
    Table length: 6000mm.
    Table width: 1800mm
    Distance between aluminum track:1100mm
    Vacuum pump: 11KW x 2set, 5.5KW x 2set. (Water should be exhausted in case of frozen)
    Vacuum degree:0 -0.09 Mpa
    Water pump power and qty: 5.5kw ,1.5 kw 1 set for each

    PVC/PP/PE Wood Plastic Sheet/Plate Production Line WPC production line, extruder, plastic machine 7



    Packaging & Shipping

    Packing & Shipping:

    • Wooden package for Jwell plastic profile sheet extrusion machine for PVC.
    • Jwell produces more than 2000 sets of extrusion machines each year, which has been sold to all over the world, including America, Brazil, Japan, Korea, India, Germany, Turnkey, Malaysia.etc.
    PVC/PP/PE Wood Plastic Sheet/Plate Production Line WPC production line, extruder, plastic machine 8







    Company Information

    Brief Infomation of JWELL MACHINERY CO., LTD

    • Founded in Shanghai, China 1997,has developed into 5 production bases including Shanghai, Suzhou, Changzhou, Zhoushan and Guangzhou with more than 1000mu area.
    • JWELL MACHINERY (CHANGZHOU) CO., LTD. is another development strategy center of Shanghai JWELL Machinery Co.,ltd, locating at Jiangsu Zhongguan cun technology industrial park, Liyang city, Jiangsu province.
    • The largest plastic extrusion manufacturer in China with 18 professional subsidiaries, 9 big metal-working workshops and 4 big heat-treatment nitration workshops.
    • We have a high qualified R&D and experienced mechanical and electrical engineer team as well as advanced processing foundation and normative assembly shop.
    PVC/PP/PE Wood Plastic Sheet/Plate Production Line WPC production line, extruder, plastic machine 9

    PVC/PP/PE Wood Plastic Sheet/Plate Production Line WPC production line, extruder, plastic machine 10





    Jwell Culture:

    • Jwell Enterprise Spirit: Attentive,Edurung,Quick and Orderly;
    • Jwell Quality Orientation:Excellent performance, Perfect Products;
    • Core Idea:Be honest to people,Be faithful to Jwell.
    PVC/PP/PE Wood Plastic Sheet/Plate Production Line WPC production line, extruder, plastic machine 11







    Our Services

    All to start and keep good & long-term cooperation with you.

    • We are the largest plastic extrusion manufacturer in China with 18 professional subsidiaries, 9 big metal-working workshops and 4 big heat-treatment nitration workshops.
    • Production capacity:20 set/sets per Month.
    • We can provide on-site installation and debugging services freely, including operation train and raw material formula , to insure the customer can operate autonomously.
    Certificates:
    PVC/PP/PE Wood Plastic Sheet/Plate Production Line WPC production line, extruder, plastic machine 12


    Exhibition:
    PVC/PP/PE Wood Plastic Sheet/Plate Production Line WPC production line, extruder, plastic machine 13PVC/PP/PE Wood Plastic Sheet/Plate Production Line WPC production line, extruder, plastic machine 14
