|Place of Origin:||Jiangsu, China (Mainland)|
|Certification:||CE ISO SGS|
|Minimum Order Quantity:||1 Set/Sets|
|Packaging Details:||Wooden package for Jwell PE Solid Wall PE plastic pipe.|
|Supply Ability:||20 Set/Sets per Month Jwell pvc 200-450 extruded plastic|
|Plastic Processed:||PVC||Screw Design:||Double-screw|
|Automatic Grade:||Fully Automatic||Voltage:||Customized|
|Length Of Production Line:||34m||Speed:||1.2-25m/min|
|Mould Power:||75kw||Pressure Degree:||SDR11/SDR17|
|Name:||Jwell Pvc 200-450 Extruded Plastic||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
pvc pipe production line,
plastic pipe production line
Jwell UPVC Solid Wall pvc plastic pipe
Features & Advantages: PVC Pipe Extrusion Line research & developed by Jwell Machinery Co., features of unique structure, easily control, highly automation and stable performance. Pipes produced by this machine has the moderate rigidity, strength, as well as good flexibility, anti-rot, anti-stress split, and favorable hot melting, make this large diameter pipe considered as the prefer product for water and gas transportation system in cities.
This picture is just for reference.
This extruder is used for PVC 200-450 pipe extrusion line. It consists of screw, barrel, driving motor, feeding system and vacuum exhausting system. It has two screws. The diameter of the screw is 92 and 188 mm. They are made of 38CrMoAlA and adopts the treatment of Nitrided. Like the screw, the barrel is Nitrided treatment. The barrel has five heating control zones. The whole heating power of it is 60kw. Its cooling system is blower fan and the cooling power is 2.2kw. The type of the gear is Helical gears and the material is 20CrMnTi. Bearings are Chinese famous brand. It has an AC motor with power of 110kw. The motor power of the vacuum exhausting system is 5.5kw with three-phase asynchronous motor working method. The motor power of the feeding system is 0.75kw.
The mould is used for PVC 200-450 pipe extrusion line. Its mouth die and core die are changeable. It possess 16 heating control zones. The heating power will up to max 75kw. The calibration unit is made of stainless steel.
The material of the vacuum tank is stainless steel which touch with the water. The vacuum pump is 4kw and water pump is 5.5kw. It is 5.8 meters long. And the stoke is 500mm.

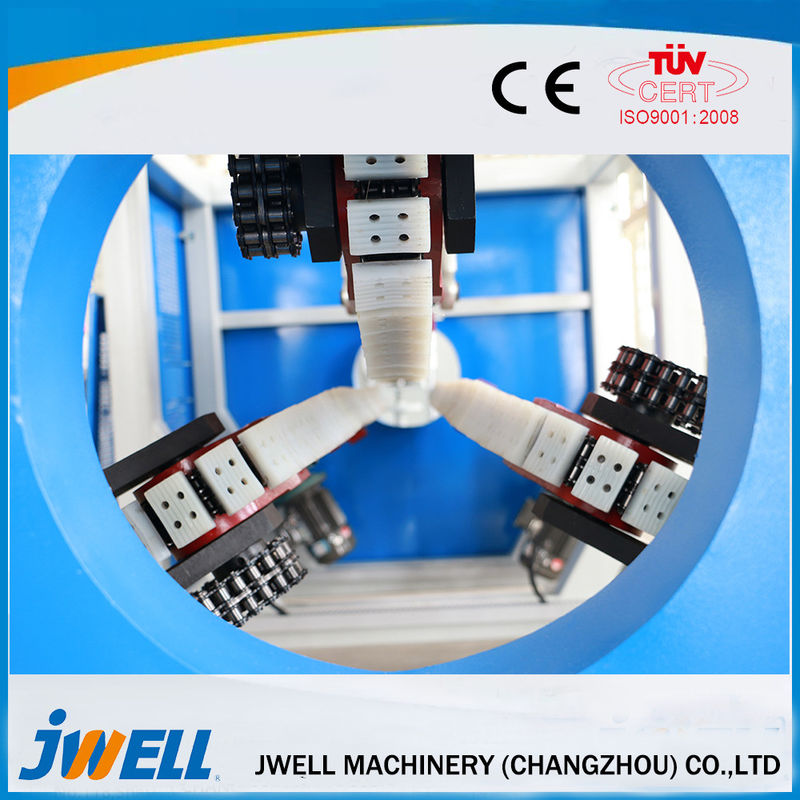

This haul-off unit is used for PVC 200-450 pipe extrusion line. The method of this haul-off unit having four caterpillars is pneumatic pressing. The length of the caterpillar is 740mm. It uses AC motors with 7.5kw of each.
This picture is just for reference.
This cutter is used for PVC 200-450 pipe extrusion line. It is no dust cutting with pneumatic pressing. The moving method of the platform is also a pneumatic way. This cutter is suitable for the pipes with diameter ranged from 200-450 . The motor of this cutter is 1.5kw.
Packaging & Shipping:
Brief Infomation of JWELL MACHINERY CO., LTD
Changzhou Jwell Machinery Co.,Ltd is another development strategy center of Shanghai Jwell Machinery Co.,ltd,located at Jiangsu zhongguancun Technology Industrial Park, Liyang city, Jiangsu province, a high-tech manufacturer specializing in R&D of plastic extrusion equipment. The factory area is about 400 acres; we have a high qualified R&D and experienced mechanical and electrical engineer team as well as advanced processing foundation and normative assembly workshop. Our enterprise spirit is :Attentive, Enduring, Quick and Orderly. Welcome both new and old customer to visit us for investigation, guidance and cooperation. Welcome to Changzhou, welcome to Jwell!
