|Place of Origin:||Jiangsu, China (Mainland)|
|Certification:||CE ISO SGS|
|Minimum Order Quantity:||1 - 4 Sets|
|Packaging Details:||Wooden package for Jwell PVC (WPC) fast loading wallboard extrusion line|
|Supply Ability:||20 Set/Sets per Month Jwell PVC YF 400 profile extrusion line|
|Plastic Processed:||PVC||Screw Design:||Double-screw|
|Automatic Grade:||Fully Automatic||Voltage:||Customized|
|Weight:||4000kg||Name:||Jwell PVC YF 400 Profile Extrusion Line|
|Water Consumption:||10m3/h||Gas Consumption:||0.6Mpa|
|Warranty:||12months||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
pvc profile production line,
pvc window profile extrusion line

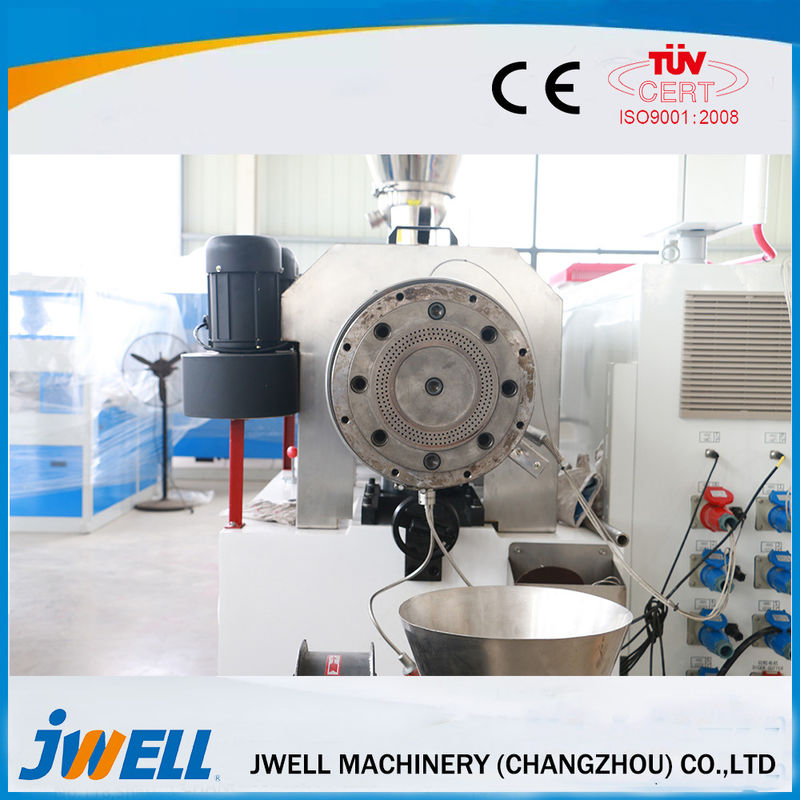

YF series production line is designed for extrusion of PVC plastic window and door, cross-section cable duct, aluminum plastic composite profiles and etc. The extruder adopts ac variable frequency or dc speed regulation drive, imported brand temperature controller.
The calibration vacuum pump and haul off motor are famous brand products. Maintenance is easy. After changing of the die and screw, it also can produce the synthenic wood foam profiles better than single screw extruder performance and advantage.
|Extruder type(SJZ series)||55/110||65/132||65/132||65/132||80/156|
|Max.extrusion capacity (kg/h)||110||180||180||180||320|
The feature : Fast loading wallboard is also called bamboo fiber integrated metope which use bamboo fiber as base material, resin material use as the surface craft material is widely used in metope adornment material of family life ,project and so on, its surface color effect can reach traditional wallpaper, besides it protects the wall . Regards as a new product is gradually replacing wall paint wallpaper metope adornment material .Fast loading wallboard is a new type decoration material with advantage like environment friendly ,heat insulation,damp proof,heat preservation,fireproof,sound insulation,fashion ,etc element , portable, easy to assemble. So it can solve the problem of the metope easy to mildew and metope dirty wash easily, meanwhile it also reach requirement of engineering buildings fire protection.
Name: YF600 Twin screw extruder
Screw: Jin Hailuo
Control Panel: Simens PLC
Electrical Spareparts: Schneider
Frequency convertor: ABB
Quantity of caterpillar: 2 lines.
Haul-off motor:4KW x 2 sets
Length of haul-off caterpillar: 2400mm; Effective length of Caterpillar: 2000mm
Rubber block :400X45X35
Effective width of caterpillar: 400mm × 2
Haul-off speed:0.5~2.0 m/min
Calibration tanks and basin are made of stainless steel
Table length: 6000mm.
Table width: 1800mm
Distance between aluminum track: 1100mm
Vacuum pump: 11KW x 2set, 5.5KW x 2set. (Water should be exhausted in case of frozen)
Vacuum degree:0 -0.09 Mpa
Water pump power and qty: 5.5kw ,1.5 kw 1 set for each
Jwell, founded in Shanghai, China 1997,has developed into 5 production bases including Shanghai, Suzhou, Changzhou, Zhoushan and Guangzhou with more than 1000mu area. JWELL is the largest plastic extrusion manufacturer in China with 18 professional subsidiaries, 9 big metal-working workshops and 4 big heat-treatment nitration workshops. Jwell has imported more than 1000 sets of CNC processing and advanced detective equipment from Korea and Japan. Jwell produces more than 2000 sets of advanced production line exported to more than 20 countries in the world every year.
