|Place of Origin:||China|
|Minimum Order Quantity:||one set|
|Packaging Details:||wooden package|
|Delivery Time:||60 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||15 sets per month|
|Warranty:||1 Year, 12 Months||After-sales Service:||Field Installation, Comm Ssioning And Training, Online Supprot,..|
waste plastic crusher,
plastic shredder machine

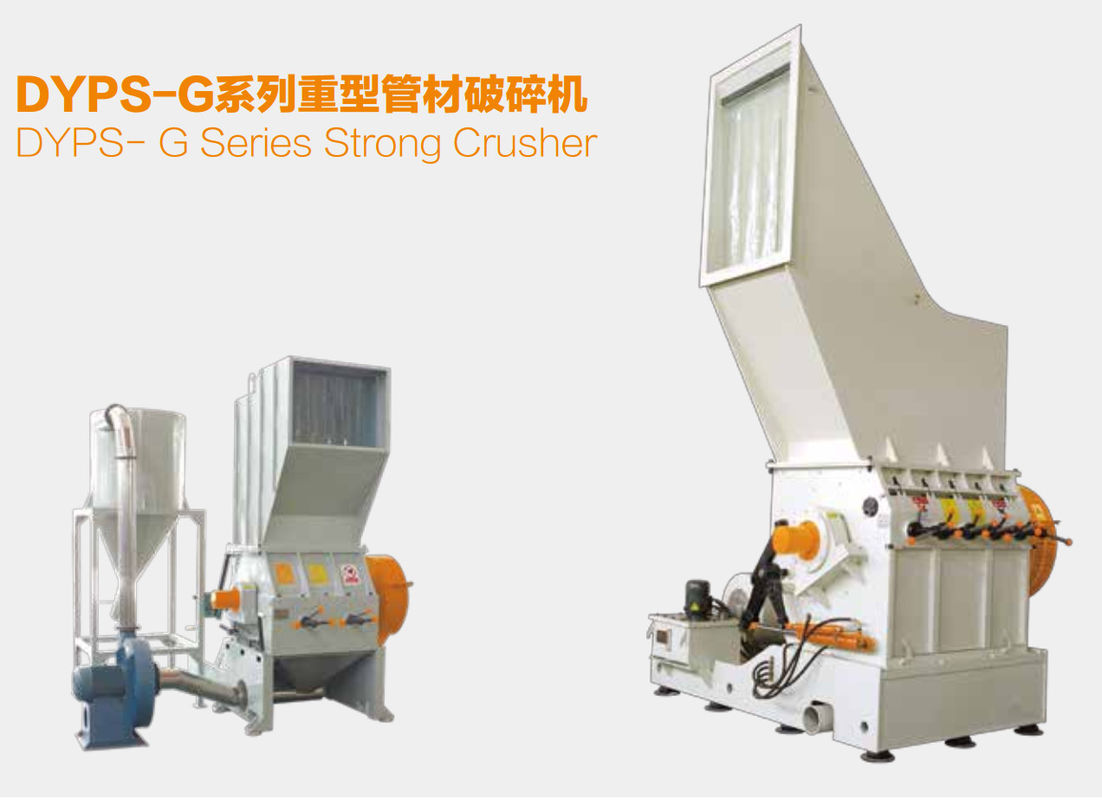

DYPS- G Series Strong Crusher
DYPS-G series heavy pipe crusher can crush middle diameter pipe directly without shredding in advance.This series crusher inlet is specially designed for plastic pipe, the pipe and the crusher rotor form a certain angle to reach the best crushing effect, crushed pipes and proles up to 6 meters in length.The crusher chamber is designed with third Fixed knife, which can change the required crushing material First cutting points. This kind construction can reduce the impact force for high strength and large volume of material and avoid the possibility of blocking material.
|Model||Feed inlet(mm)||Power of main motor(kw)||Rotors(pc)||Stators(pc)||Rotor||Output(kg/h)|

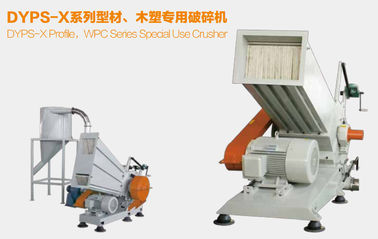

DYPS-X Profile,WPC Series Special Use Crusher
The traditional crusher for crushing plastics, proles and WPC products existing certain difculties, normally, there need large crushing cavity to crush large volume and quantities material. Therefore, DYUN developed the DYPS-X range series. Thanks to the almost level feeding hopper, long pieces can be fed easily. Due to the rotor of the machine can automatically grasp crushed material, therefore, there won't be material blocking situation.
|Model||Feed inlet(mm)||Effective width(mm)||Power of main motor(kw)||Power of fan(kw)||Rotors(pc)||Stators(pc)||Output(kg/h)|

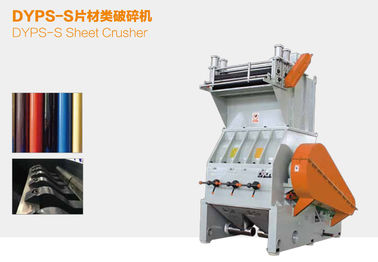

DYPS-S Sheet Crusher
It is difcult to crush the quite width of PP/ABS/PMMA sheet, plates and foam coil material with thickness 0.2~3mm. The DYPS-S can solve this problem. Comparing with ordinary crusher, this series crusher add a set of haul-off device,two sets of press roller, air press controller. The line speed can reach 30m/min. The capacity is higher. The main axis is processed with high quality steel after verifying by dynamic and static balance. The rotor adopts “V”type cutting technology and the crusher body adopts water cooling system, which avoid sticking the blade because of the heating of material. We can provide material collection device and powder separation system according to customer’s requirements.
|Model||Feed inlet(mm)||Effective width(mm)||Power of main motor(kw)||Tow motor pow(kw)||Output(kg/h)|

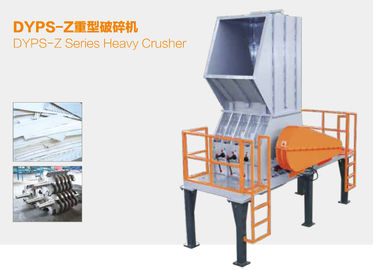

DYPS-Z Series Heavy Crusher
DYPS-Z series heavy crushers are designed specially for the recycling material which is not easy to be crushed and thickness 3~30mm.Cabinet: The main box of DYPS-Z series crusher, processed by CNC Machine exactly with the strong welding structure. This kind of crusher features thick wall thickness, high strength, good wear resistance, no pollution, long life. The upper box can be opened easily by hydraulic
system and repaired conveniently.
Main axis: The main axis is processed with high quality steel after verifying the balance. Good toughness, stable working state, low shaking are the main features. The rotor with new V type cutting technology can be composed of three blades, five blades, seven blades on the basis of different crushing material. This technology makes sure the blade can produce uniform granular with low energy and low noise.Filter: The screen plate is processed with high strength material. It can be installed easily with hydraulic system and changed conveniently.
|Model||Feed inlet(mm)||Power of main motor(mm)||Rotors(pp)||Stators(pp)||Rotor||Output(kg/h)|
Q1--How much does it cost?
--Please fill in your specific requirement in the bottom blank and sent to us, so that we could make a detail quotation for you.
Q2:--I want to know more about your company and your products, how?
--For more information, please visit our website: www.jwell.cn or www.jwellcz.cn. The best way, of course, is to go to our factory and see our products. Jwell welcomes your coming at any time!
Q3:-- How about your after-sale service?
--When the machines are ready and be sent to your factory, we will sent our engineers to your factory to help your worker to do the installation and train your workers. Above all, we have the maintenance engineers all over the world, who are always ready to go to our customer's factory and provide them with the best after-sale service
Q4:--Where is your factory located?
--We are in No.118, Shangshang Road, Liyang, Changzhou city, Jiangsu province. welcome to visit us!!!
1,The guarantee period is 1 year and service is available lifelong.
2,Our expert will answer any inquiry within 24-48 hours and it will be solved as soon as possible.
3,The customer can send the engineer to our JWELL with training.
4, The Seller supplies the complete technical support documents and the relative drawings of the electric components written in Chinese and English.
5, The seller can send enough technicians to the Buyer’s company for installation and testing the lines.
Contact Person: Zhou
