|Place of Origin:||Jiangsu, China (Mainland)|
|Certification:||CE ISO SGS|
|Minimum Order Quantity:||1 Set/Sets|
|Packaging Details:||Wooden package for Jwell PE/ PP/PVC high speed high capacity plastic pipe extrusion machine|
|Supply Ability:||20 Set/Sets per Month Jwell PE/ PP/PVC high speed high capacity plastic pipe extrusion|
|Plastic Processed:||PE||Screw Design:||Single-screw|
|Automatic Grade:||Fully Automatic||Voltage:||Customized|
|Length Of Production Line:||30m||Speed:||1.2-12m|
|Mould Power:||11kw||Pressure Degree:||SDR11/SDR17|
|Name:||Jwell PE/ PP/PVC High Speed Pipe Extrusion Machine||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
pvc pipe production line,
plastic pipe production line
Jwell PE/ PP/PVC plastic extrusion machine
Features & Advantages: The Large Diameter HDPE/MDPE Pipe Extrusion Line research & developed by Jwell Machinery Co., features of unique structure, easily control, highly automation and stable performance. Pipes produced by this machine has the moderate rigidity, strength, as well as good flexibility, anti-rot, anti-stress split, and favorable hot melting, make this large diameter pipe considered as the prefer product for water and gas transportation system in cities.
Main Technical Parameter:
|450-800||120/33 or 150/33||1000-1300||600|
|800-1200||90/33;120/33 or 150/33||1000-1500||900|
|1000-1600||120/33 or 150/33||1000-1700||1300|
|1400-2300||120/33;120/33 or 150/33||1500-2000||1400|
|2000-3000||120/33;120/33 or 150/33||2000-2500||1550|
Note:The specifications are subject to change without prior notice.
The modern developed 2-layer or 3-layer spiral mould is specially for double-anti pipe extrusion. This pipe owns even and equal co-extrusion wall thickness, the inner and outer wall made of double-anti material (Anti-flammable, anti static electricity), the core layer of HDPE wall, reasonably reduce the costs of double-anti material, accordingly reduced the costs of the whole product.

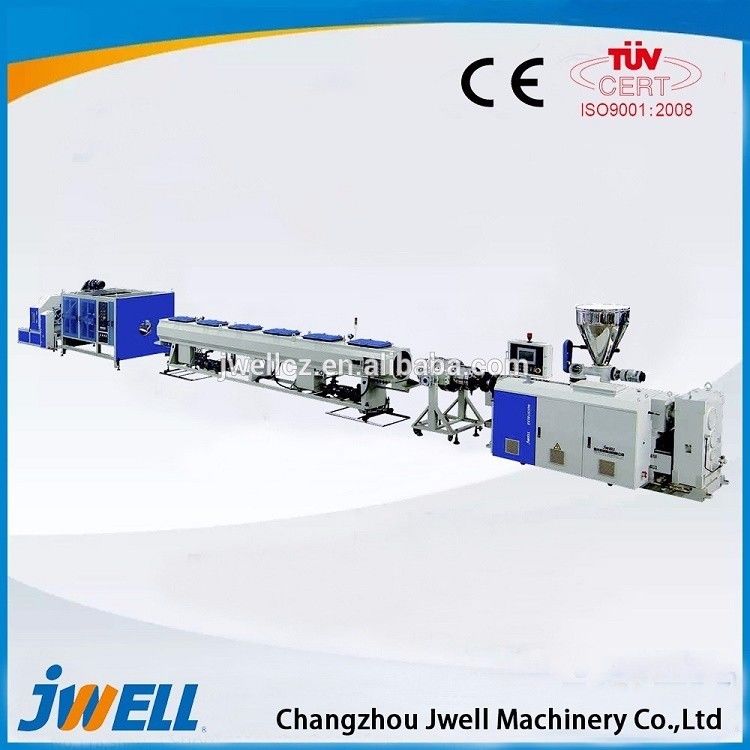

HDPE Water Supply Pipe, Gas Pipe Energy-saving and High Speed Extrusion Line
This production line adopts the most advanced technology of Europe,it is a new research achievement of energy-saving production line,which is suitable for high speed extrusion of HDPE,PP and other polyolefin pipe.compared with common production line,the energy-saving effect reach on 35%, and the product efficiency increase more than 1 times, thus it is not only saving the cost of site and manpower,but also improving efficiency.This production line has nice appearance,higher automatical degree ,production reliable and stable.
Main Technical Parameter:

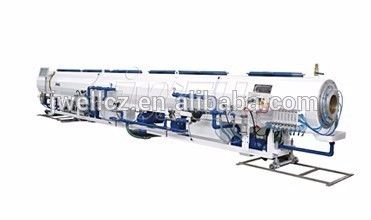

Common Diameter HDPE Pipe , PP Chemical Usage Pipe and MPP Electrical Wire Protection Pipe Extrusion Line
Advantage:Our company using the development HDPE,PP pipes extrusion technology develops this kind of extrusion line. This line features compact structure, highly automation and stable performance. This line is widely used in producing HDPE water, gas supply pipe, double-anti pipe for mine industries.
Main technical parameters:
Packaging & Shipping:
Brief Infomation of JWELL MACHINERY CO., LTD
Changzhou Jwell Machinery Co.,Ltd is another development strategy center of Shanghai Jwell Machinery Co.,ltd,located at Jiangsu zhongguancun Technology Industrial Park, Liyang city, Jiangsu province, a high-tech manufacturer specializing in R&D of plastic extrusion equipment. The factory area is about 400 acres; we have a high qualified R&D and experienced mechanical and electrical engineer team as well as advanced processing foundation and normative assembly workshop. Our enterprise spirit is :Attentive, Enduring, Quick and Orderly. Welcome both new and old customer to visit us for investigation, guidance and cooperation. Welcome to Changzhou, welcome to Jwell!
Q1--How much does it cost?
--Please fill in your specific requirement in the bottom blank and sent to us, so that we could make a detail quotation for you.
Q2:--I want to know more about your company and your products, how?
--For more information, please visit our website: www.jwell.cn or www.jwellcz.cn. The best way, of course, is to go to our factory and see our products. Jwell welcomes your coming at any time!
Q3:-- How about your after-sale service?
--When the machines are ready and be sent to your factory, we will sent our engineers to your factory to help your worker to do the installation and train your workers. Above all, we have the maintenance engineers all over the world, who are always ready to go to our customer's factory and provide them with the best after-sale service
Q4:--Where is your factory located?
--We are in No.118, Shangshang Road, Liyang, Changzhou city, Jiangsu province. welcome to visit us!!!
For more infomation about Jwell PE/ PP/PVC plastic extrusion machine , please visit our website
URL:http://www.jwell.cn /http:www.jwellcz.cn Or Contact with
Mobile phone:008618851216977 whatsapp:008618301911897
Welcome to Jwell!
Contact Person: Zhou
