Jwell Anti-crash PE WPC Plastic Extrusion Line For Floors
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
wpc profile extrusion line
wpc board production line

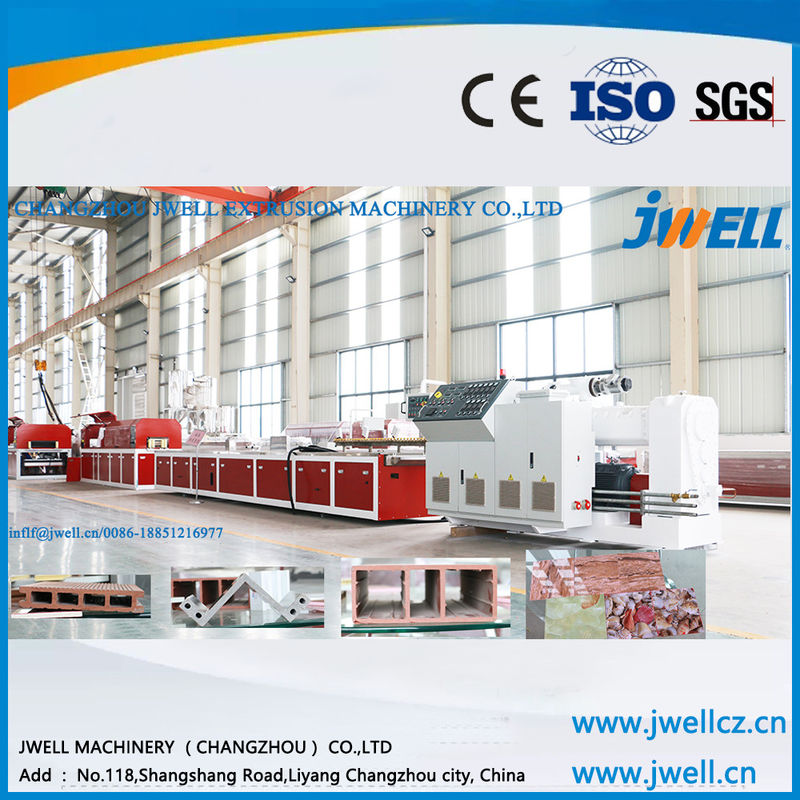

Jwell fully automatic WPC plastic extrusion line for PE&PP
PE&PP Wood-Plastic Two Step Extrusion Line Two-step way is that the wood-plastic composite materials complete in different equipment of mixing, from play, extruding products, mixing the raw material in a certain formula, forming wood-plastic particles in the middle, and then squeezing out products. And nowadays, the two-step way is used currently, application of a wider general use dual-cone-or two-extruder granulation, and then double-cone or single screw extruder extrusion products, mainly used in floor indoor or outdoor,parapets, tray, such as PE plastic extrusion products. Because of the advantages: simple operation, lower requests to the overall technological level and to the matching mold and extrusion equipment than the one-step, and also smaller investment on equipment relatively.
Power of main motor
SJZ Series Counter Rotation Conical Twin-screw Pelletizing Extruder This pelletizing machine is composed by a conical twin-screw extruder and the correspondingly pelletizing downstream equipment, it is suitable for the pelletizing of PVC, PE raw material with wood powder or other additives. The pellets produced by this machine is evenly, solid, elegance. The palletizing downstream equipment is the die face cutter, air transferring unit, vibration separating and cooling unit. This palletizing downstream equipment has the features of high automation and high production efficiency.
Power of main motor(KW)
JWE Series Co-rotation Parallel Twin-screw Pelletizing Extruder 1. Building block type screw and barrel of the extruder, according to the L/D by yourself. It’s fit for all kinds of the material machining for the surface wearable. The temperature of barrel can enactment by oneself each zone. 2. The method of the head cutting is heating cut commonly 3. The method of cooling remove the material is two class or three class fan remove commonly
Power of main motor(KW)
Excellent character for WPC material
1. Excellent water resistance, the bending strength and stiffness will not change after immersing in water for 30days. 2. Excellent antisepsis; as non-absorbent, it will not rot and has a very good quality of corrosion resistance, neither does it has termites harmless. 3. Truly green & environment-friendly, no release of formaldehyde and can be recycled. It can save the nature wood resources which was also called revolutionary green environmental newly material. 4. Anti-crash. The fixing ability of wood screw is very strong, which is 4 times than wood-dust board, and 5 times than MDF(medium density fiberboard). 5. It can be used as an outdoor sheet for long time because of its well anti-ultraviolet function and good capability even in the temperature of minus 30 degree. 6. Although using thermoplastic composite material, it wouldn’t be soften even in an temperature of 120degree.
For many natural plant fibers such as wood, bamboo, crop stalks, etc, which can be used to squeeze the raw materials quality, must be a process crushing, milling, screening, drying, with mixed, and other pre-treatment process to improve the defects and deficiencies of single material in the course of the extrusion. The fiber should be of appropriate particle size in the process, and then join them with coloring agent, lubricants, coupling agent or foam, and other additives of appropriate amount, put them in a high-speed mixed units that they can be fully mixed and then do further precipitation, to meet the requirements suitable for extrusion.
Rigid and carrying capacity
Acid and alkali wearable
Partly Can be recycled
100% can be recycled
Testing Equipment for WPC Products
Sander This machine suits for the thickness sanding, fine sanding and polish the surface of other various boards. Carving machine for door This machine is mainly used for pattern carving of wood-plastic board, hard wood board, density board and cabinet board. It uses three spindles as landscape orientation, lengthways and up and down.
Transfer printing machine for door The machine is used for surface design transferring of wood-plastic door,wood-plastic cabinet door board, PVC door and wall board. Using high temperature transferring, this machine can automatically remove dust and have board pre-heating device.
WPC embossing machine The wood-plastic embossing is mainly used for the pattern of repression of PE\PP\PVC wood plastic profile,sheet surface,it's better for the wood products surface of wood texture.the surface of the embossing can be processed all kinds of wood texture,surface can be hard chrome plating,Roller cavity heating,simple operation and wear-resistant.
Ultraviolet accelerated aging test machine
Suitable for testing kinds of material and products. Under the climate changes of sunshine, temperature, humidity, condensation etc, In order to test related products and material aging degree. In a short time get discoloration, fading and so on.
Mainly used in testing the impact toughness of hard plastic sheet, pipe, profile, enhance nylon, glass, steel, ceramics, cast stone, electrical insulation, and other non-metallic materials.It is the ideal test equipment for chemical industry, scientific research units, universities and colleges, quality inspection departments and professional manufacturers.
Melt flow indexer
It allows for the measurement of melt mass-flow rate (MFR) and melt volume-flow rate (MVR), melt density test, not only suitable for the high melting temperature engineering plastics, but also for low melting temperature plastics. It is widely used in chemical industry, scientific research units, universities and colleges, quality inspection departments.
Packing & Delivery
Brief Infomation of JWELL MACHINERY CO., LTD Founded in Shanghai, China 1997,has developed into 5 production bases including Shanghai, Suzhou, Changzhou, Zhoushan and Guangzhou with more than 1000mu area,which is the largest plastic extrusion manufacturer in China with 18 professional subsidiaries, 9 big metal-working workshops and 4 big heat-treatment nitration workshops. JWELL MACHINERY (CHANGZHOU) CO., LTD. is another development strategy center of Shanghai JWELL Machinery Co.,ltd, locating at Jiangsu Zhongguan cun technology industrial park, Liyang city, Jiangsu province and has a high qualified R&D and experienced mechanical and electrical engineer team as well as advanced processing foundation and normative assembly shop.
Jwell is the largest plastic extrusion manufacturer in China with 18 professional subsidiaries, 9 big metal-working workshops and 4 big heat-treatment nitration workshops. Production capacity:20 set/sets per Month.We can provide on-site installation and debugging services freely, including operation train and raw material formula , to insure the customer can operate autonomously.Warranty:12 months.
Jwell Enterprise Spirit: Attentive,Edurung,Quick and Orderly; Jwell Quality Orientation:Excellent performance, Perfect Products;Core Idea:Be honest to people,Be faithful to Jwell. In order to enrich our workers' spare time, enhance the teamwork spirit and improve their personal quality, we hold various ongoing activities and competitions every year.
