|Place of Origin:||Jiangsu, China (Mainland)|
|Certification:||CE ISO SGS|
|Minimum Order Quantity:||1 Set/Sets|
|Packaging Details:||Wooden package for Jwell PE Solid Wall PE plastic pipe.|
|Supply Ability:||20 Set/Sets per Month Jwell energy-saving HDPE 315-630 extruder screw|
|Plastic Processed:||PE||Screw Design:||Single-screw|
|Automatic Grade:||Fully Automatic||Voltage:||Customized|
|Length Of Production Line:||60m||Speed:||1.2-25m/min|
|Mould Power:||116kw||Pressure Degree:||SDR11/SDR17|
|Name:||Jwell Energy-saving HDPE 315-630 Extruder Screw||After-sales Service Provided:||Engineers Available To Service Machinery Overseas|
plastic pipe production line,
hdpe pipe production line
HDPE Water Supply Pipe, Gas Pipe Energy-saving and High Speed Extrusion Line
This production line adopts the most advanced technology of Europe,it is a new research achievement of energy-saving production line,which is suitable for high speed extrusion of HDPE,PP and other polyolefin pipe.compared with common production line,the energy-saving effect reach on 35%, and the product efficiency increase more than 1 times, thus it is not only saving the cost of site and manpower,but also improving efficiency.This production line has nice appearance,higher automatical degree ,production reliable and stable.

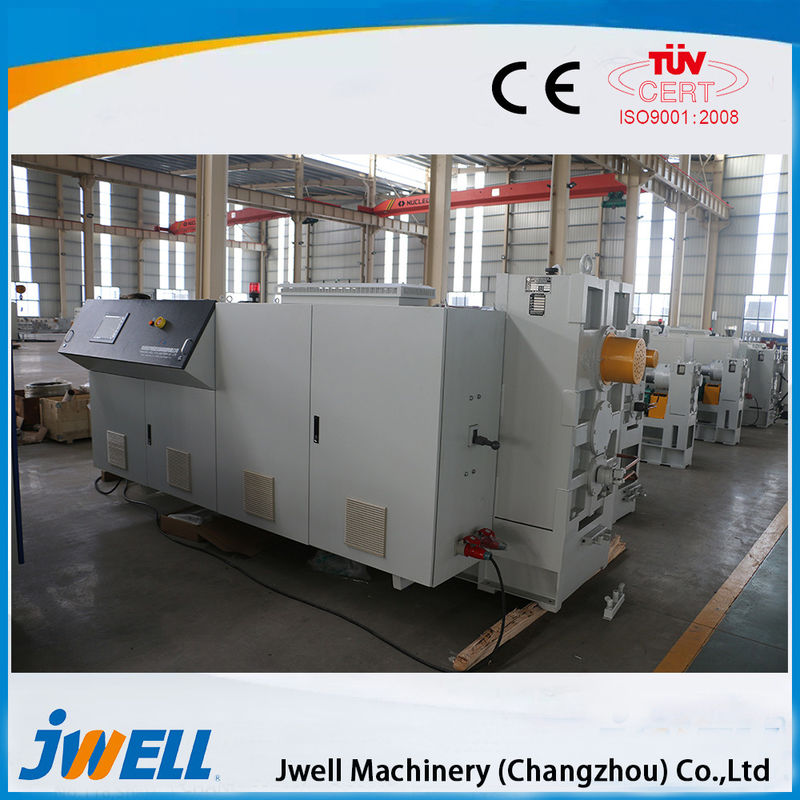

This picture is just for reference.
This extruder is used for PE315-630 pipe extrusion line. It consists of screw, barrel, gearbox and driving motor. The diameter of the screw is 120mm. It is made of 38CrMoAlA and adopts the treatment of Nitrided. The barrel is made of 38CrMoAlA. Like the screw, it is Nitrided treatment. The barrel has six heating control zones. The whole heating power of it is 60kw. Its cooling system is brower fan and the cooling power is 3.75kw. The matrial of the house is QT200. The type of the gear is Helical gears and the material is 20CrMnTi. It uses the Quenching of the gear surface. Bearings are Chinese famous bearings. Its lubricating system is press system. At the same time, its cooling system is separate. The method of the feeding block is water cycle. The material is Q235. Then it is an DC motor. The power of it is 280kw.
The 25/25 single screw extruder is for color strip. The diameter of its screw is 25mm. It is Nitrided treatment. The material of the barrel is 38CrMoAlA. It has two heating control zones. Each heating power is 1.8kw. The parts of this kind of gearbox is as the same as the gearbox in the extruder. But Lubricating system is Splashing system. Also its feeding block is like the feeding block in extruder. It has an AC motor with the power of 1.5KW.
Packaging & Shipping:
Brief Infomation of JWELL MACHINERY CO., LTD
Changzhou Jwell Machinery Co.,Ltd is another development strategy center of Shanghai Jwell Machinery Co.,ltd,located at Jiangsu zhongguancun Technology Industrial Park, Liyang city, Jiangsu province, a high-tech manufacturer specializing in R&D of plastic extrusion equipment. The factory area is about 400 acres; we have a high qualified R&D and experienced mechanical and electrical engineer team as well as advanced processing foundation and normative assembly workshop. Our enterprise spirit is :Attentive, Enduring, Quick and Orderly. Welcome both new and old customer to visit us for investigation, guidance and cooperation. Welcome to Changzhou, welcome to Jwell!
All to start and keep good & long-term cooperation with you.
Q1-- How much does it cost?
-- Please fill in your specific requirement in the bottom blank and sent to us, so that we could make a detail quotation for you.
Q2:-- I want to know more about your company and your products, how?
--For more information, please visit our website: www.jwell.cn or www.jwellcz.cn. The best way, of course, is to go to our factory and see our products. Jwell welcomes your coming at any time!
Q3:-- How about your after-sale service?
--When the machines are ready and be sent to your factory, we will sent our engineers to your factory to help your worker to do the installation and train your workers. Above all, we have the maintenance engineers all over the world, who are always ready to go to our customer's factory and provide them with the best after-sale service
Q4:-- Where is your factory located?
-- We are in No.118, Shangshang Road, Liyang, Changzhou city, Jiangsu province. welcome to visit us!!!
Contact Person: Zhou
