|Place of Origin:||China|
|Minimum Order Quantity:||>=1 Acres|
|Plastic Processed:||PE||Screw Design:||Single-screw|
|Weight:||30-45ton||After-sales Service Provided:||Free Spare Parts, Field Maintenance And Repair Service, Online Support|
|Warranty:||1 Year||Thickness 1~6mm:||Width: 2000~8000mm|
pvc sheet production line,
monofilament extrusion line

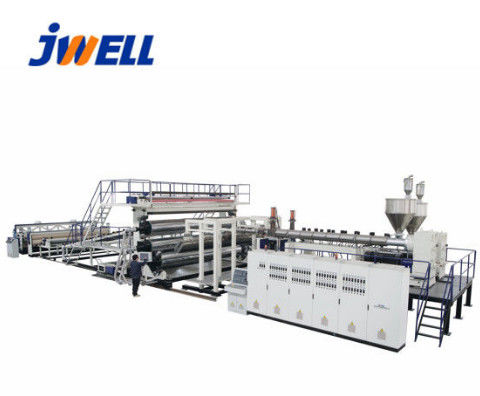

JWELL develops the parallel twin screw extrusion line for PET sheet,this line equipped with degassing system,and no need drying and crystallizing unit.The extrusion line has the properties of low energy comsuption,simple production process and easy maintenance.The segmented screw structure can reduce the viscosity loss of PET resin,the symmetrical and thin-wall calender roller highten the cooling effect and improve the capacity and sheet quality.Multi components dosing feeder can control the percentage of virgin material,recycling material and master batch precisely,the sheet is widely used for thermoforming packaging industry.
1) PETG is called low temperature PET,it's a new environment-friendly packing material with features such as high luster,good transparency,excellent barrier proprty,self-adhesion,which is used for glue bonding and high-frequency processing.
2) CPET is a kind of modified PET.with good resistance to high temperature,it is usually used for package in microwave oven.
3) PET stereoscopic optical grating sheet,can be used as top grade package for cosmetics,medicin,tobacco&alcohol and common goods such as stationery,advertisements,posters and all kinds of cards.
4)PLA is a kind of line shape Aliphatic Polyesters.PLA can be used in rigin package of fruits,vegetables,eggs,cooked food and roast food,also can be used for packaging of sandwich,biscuit and some other package like fresh flower.
|SPECIFICATIONS FOR PET SHEET LINE|
|Model||Multi layer||Single layer||Highly-efficient|
|Thickness of the product||0.15-1.5mm||0.15-1.5mm||0.15-1.5mm|
|Main motor power||110kw/45kw||110kw||250kw/55kw|
|Max extrusion capacity||500KG/H||450KG/H||800-1000KG/H|
Contact Person: Zhou
